Crib Jacks

CRIB JACKS

15-ton crib jacks

Buckingham Crib Jacks

Crib jacks are the dependable backbone of house lifting and structural support. Built in the USA and field-proven, Buckingham crib jacks pair with cribbing to safely lift, level, and temporarily support structures during repairs and moves. Use them for house leveling, floor-joist repair, beam installs, underpinning, and other temporary support work. Choose single-acting for simplicity or double-acting for powered retracts and faster resets.

What it’s for

House leveling, beam installs, floor-joist repair
Temporary support and incremental lifts with cribbing
Crews needing a flexible, easy-handling jack

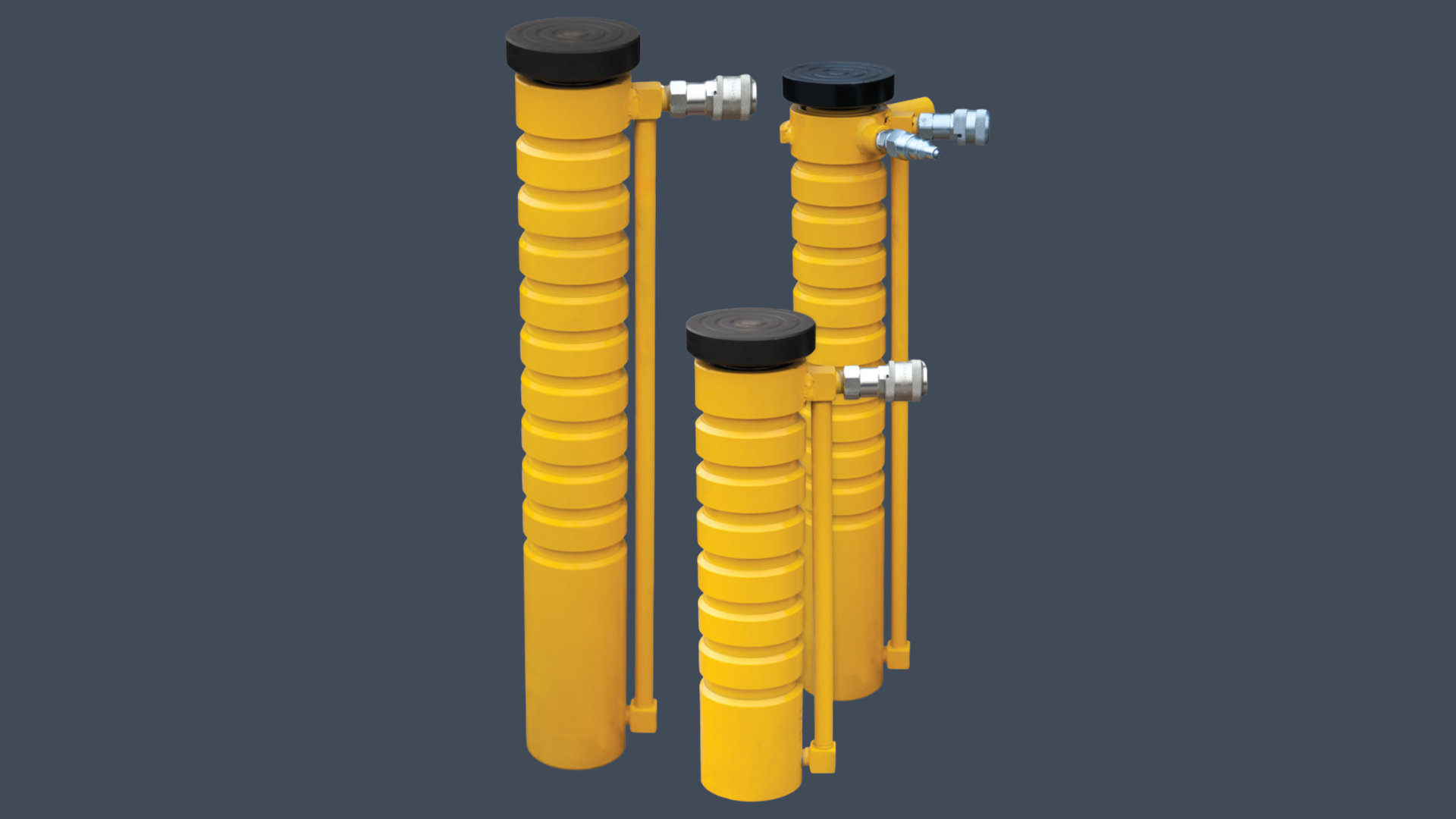

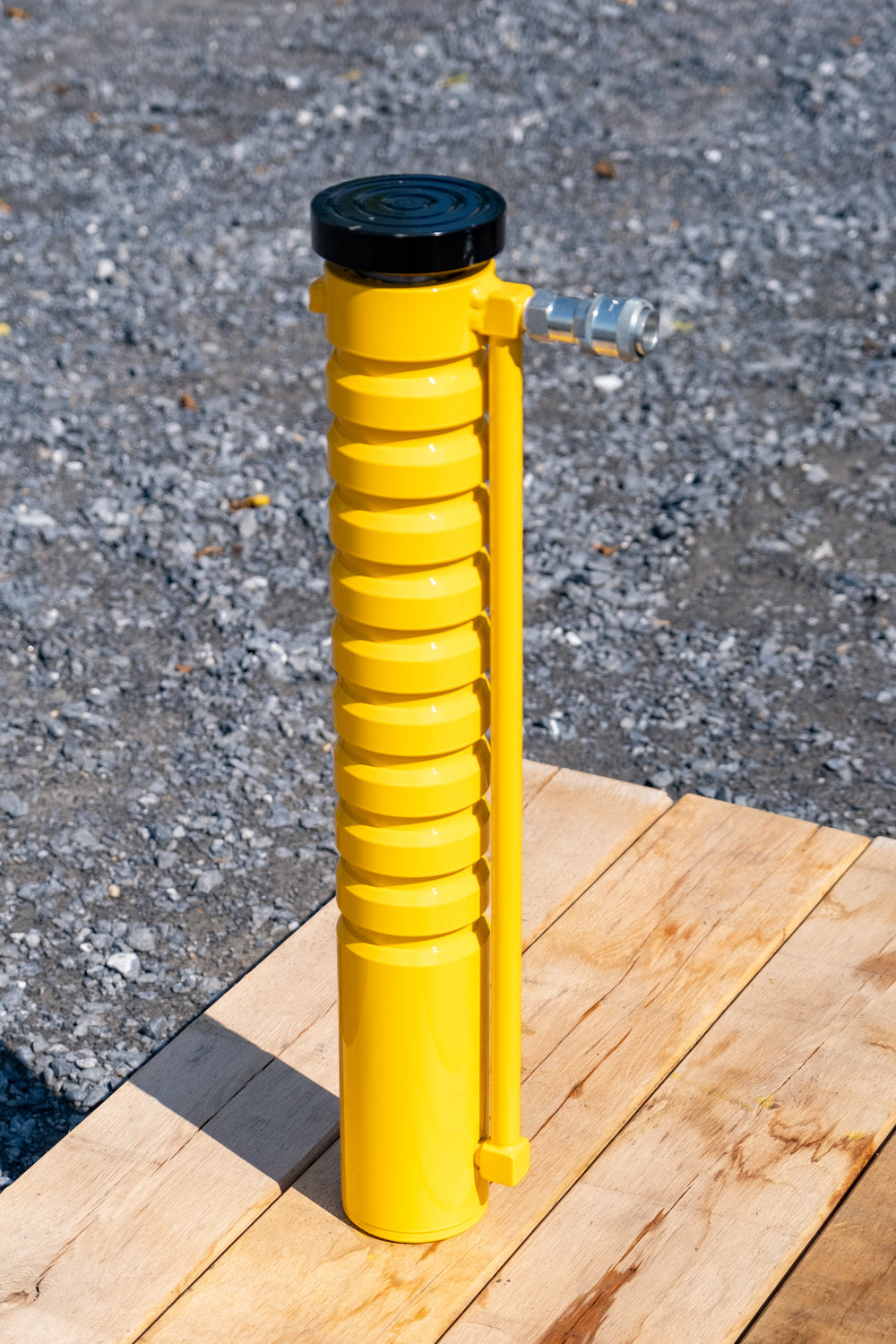

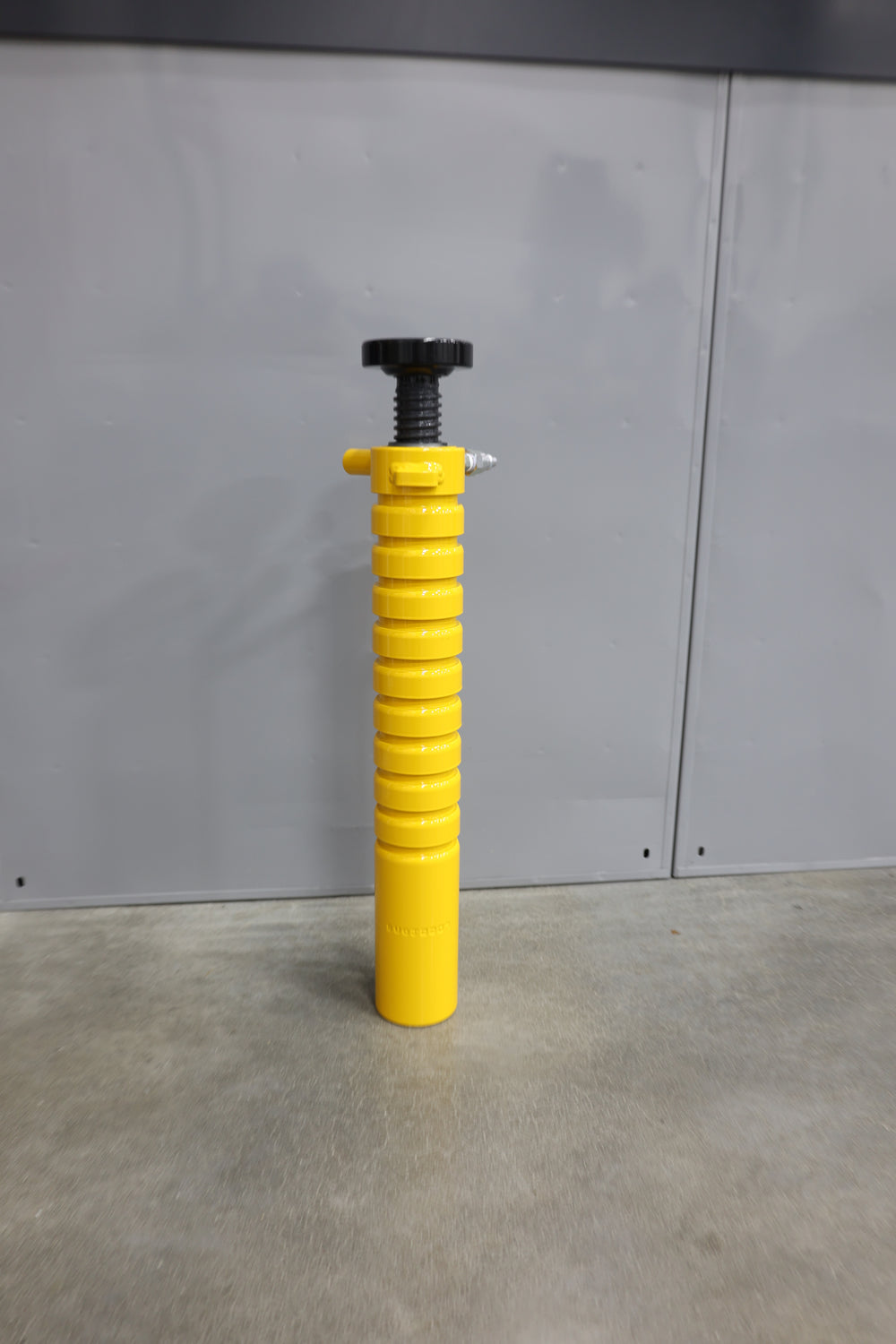

15-ton crib jacks

key features

Capacity

Single acting or double acting

Stroke length

Adjustable stops

Fittings

Modular

30,000lbs or 15-ton

Comes in single acting or double acting for faster resets

Comes in 9" or 17" stroke lengths

Adjustable screw top and drop-stops for secure setup

Comes standard with 3/8" quick connect fittings

The 17" single acting crib jack can also be used with the Buckingham Toe Jack Adapter

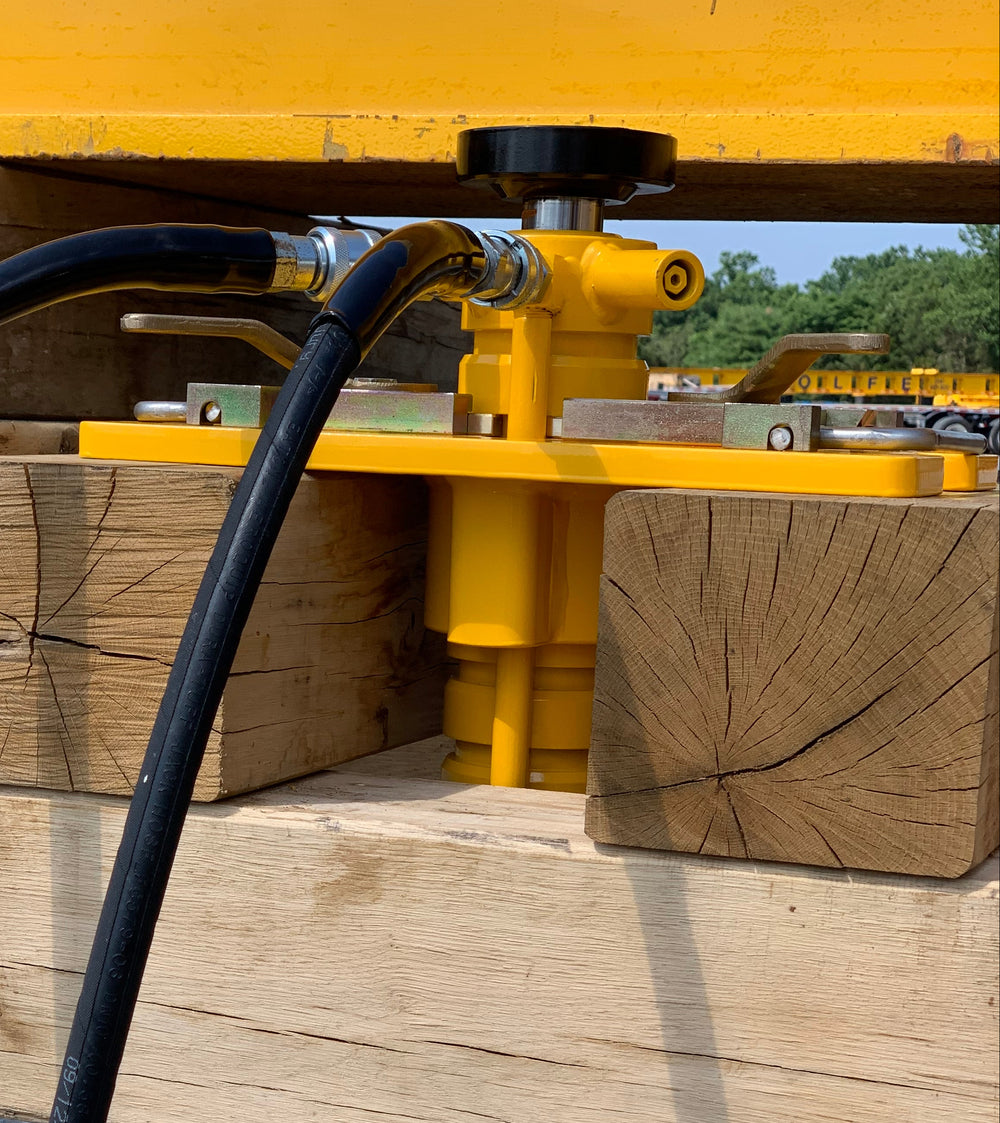

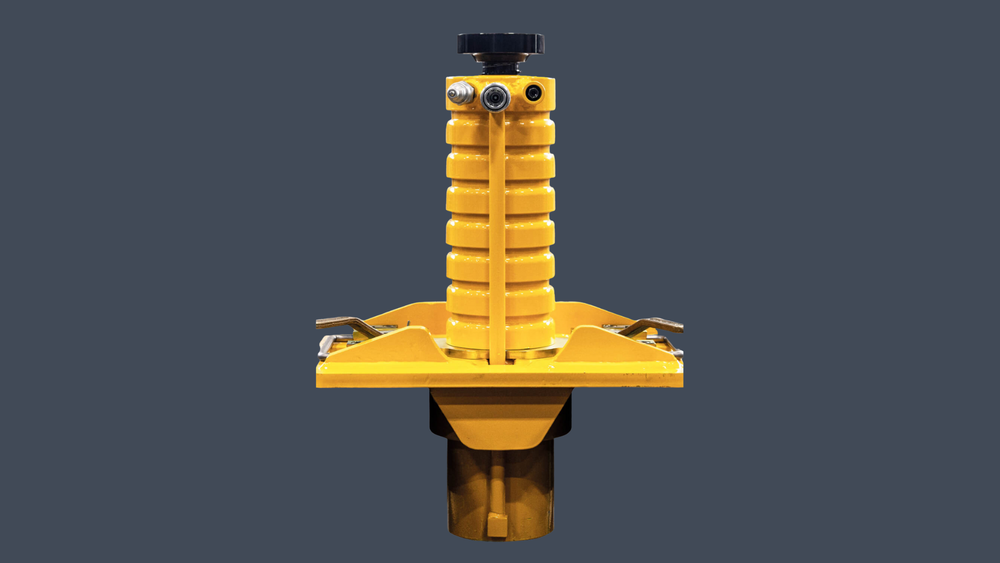

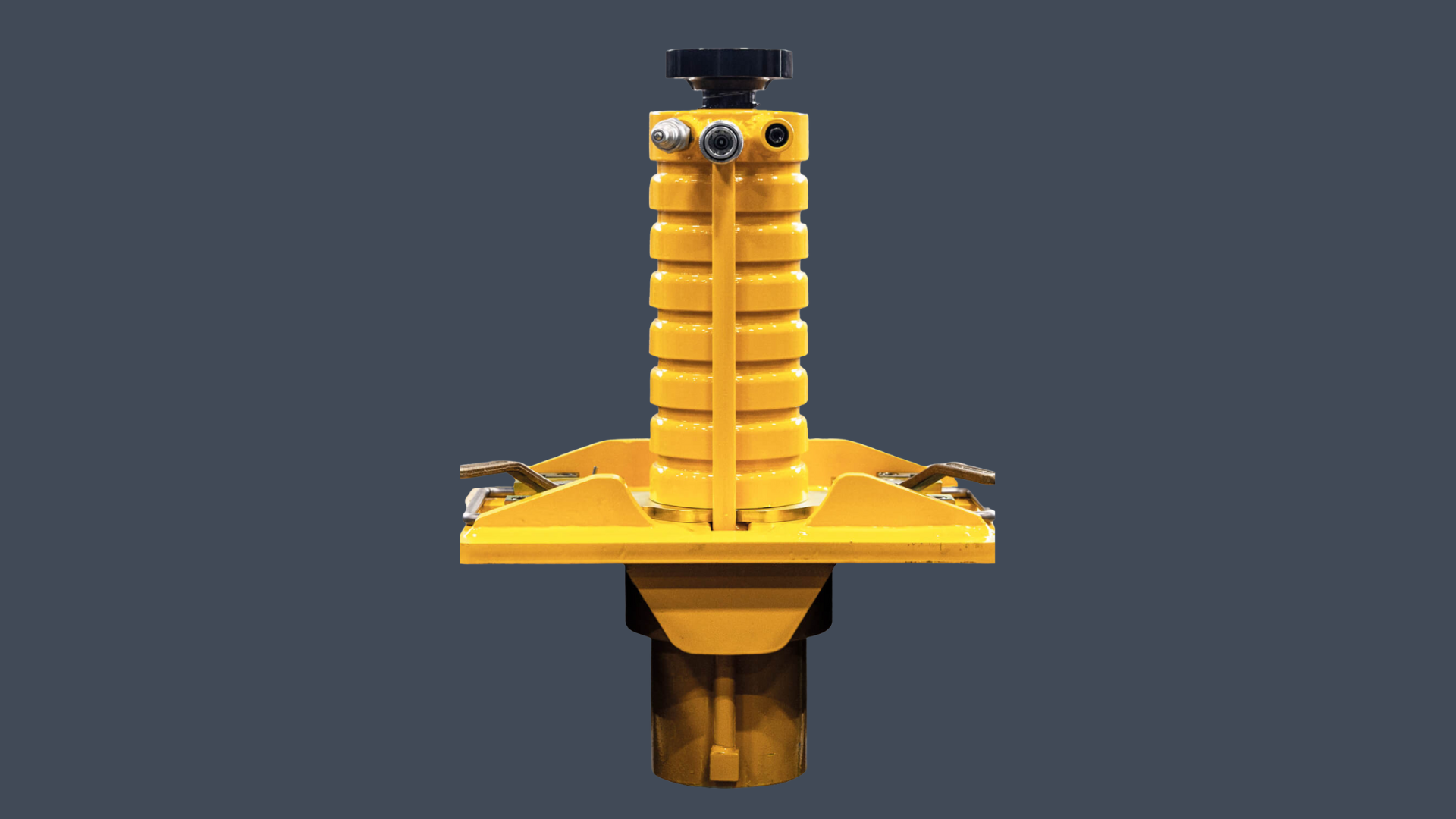

30-Ton Crib Jack

Buckingham 30-ton Crib Jacks

High-capacity, double-acting crib jack for heavier structures and longer strokes—confidence for the big lifts.

What it’s for

Heavy commercial/residential structures
Long-stroke lifts with tight control on up and down
Pairing with jack return plates for rapid, safe resets

Buckingham 30-ton crib jack

Key features

Capacity

Double Acting

3.5" bore

Made in USA

60,000lbs capacity, 16" stroke

Hoses and fittings

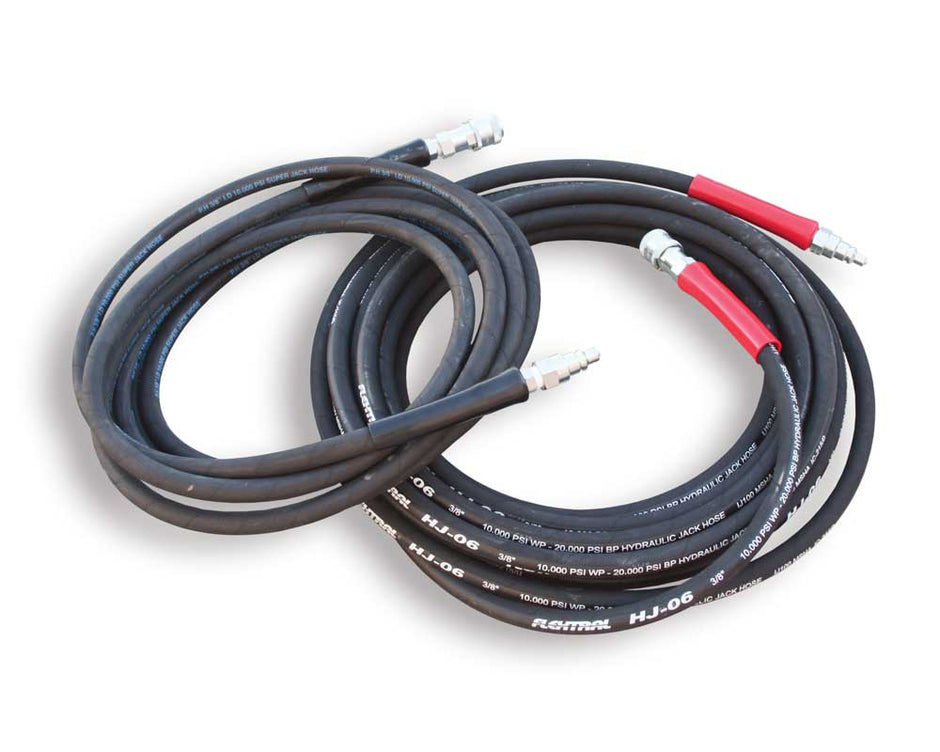

Jack Hoses

Our 3/8" 10,000 PSI Jack Hoses are manufactured with a High Nitrile inner tube for superior hydraulic fluid compatibility, two braids of high tensile steel, and a black synthetic rubber cover that is resistant to weather, oil, and abrasion. The hoses can be ordered with either quick connectors or screw connectors to match the hoses you already use. The hoses come standard in 25' (black bend guard) or 50' (red bend guard) but can be ordered in custom lengths as well.

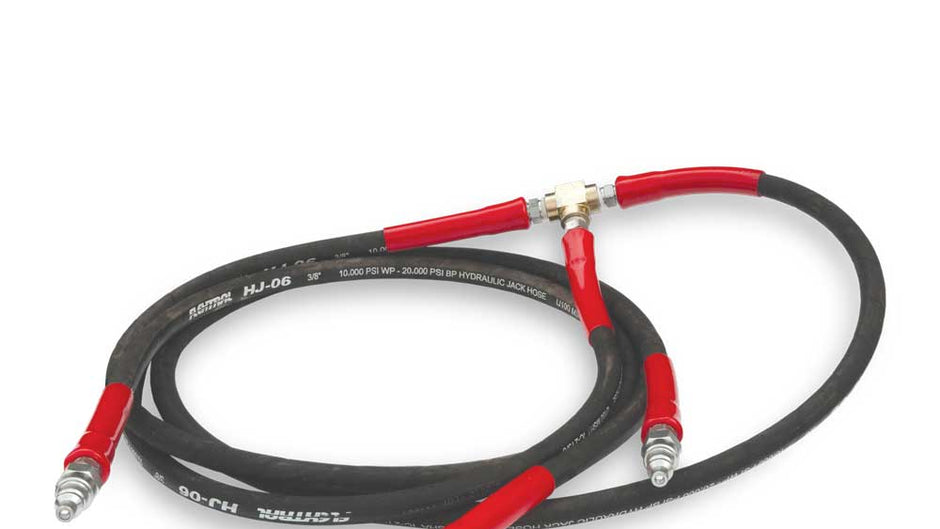

Tee hoses

Tee Hoses come in 6' lengths or may be ordered in custom lengths.

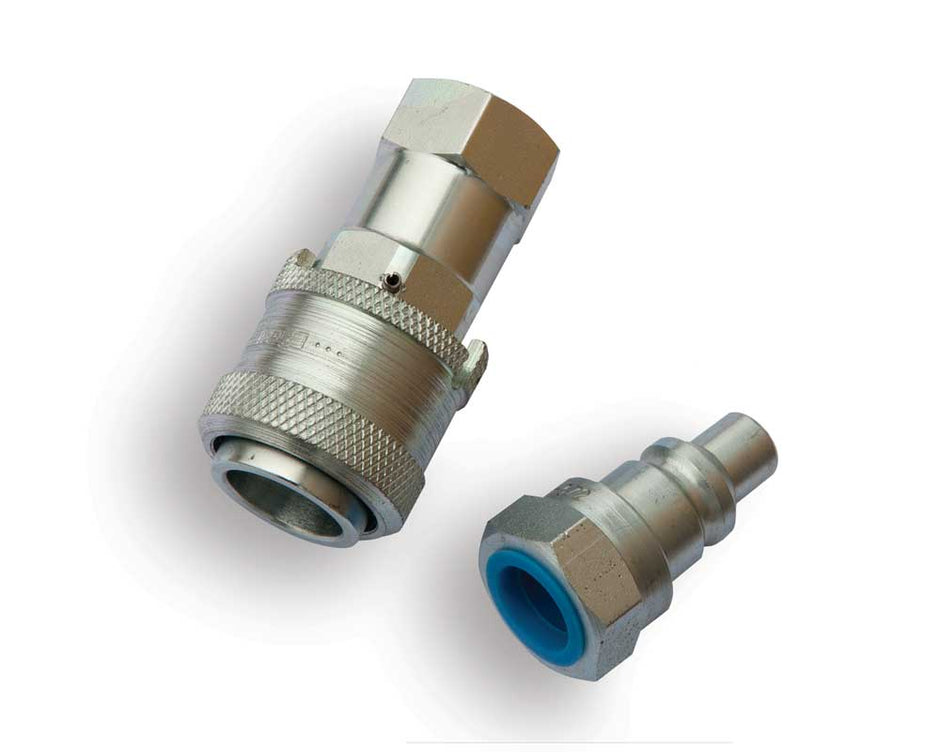

Quick Connect Fittings

Comes standard with Quick Connect Fittings. Screw couplings available upon request

BUCKINGHAM CRIB JACKS — QUANTITY & QUOTE

Jacks

15-Ton DA — 17" Stroke

15-Ton SA — 17" Stroke

15-Ton SA — 9" Stroke

30-Ton DA Crib Jack

Accessories

Return Plate (DA Jacks)

Crib Jack Base

25' Jack Hose

50' Jack Hose

6' T Hose

SPEC SHEET DOWNLOADS

SPEC • 15-Ton DA 17" SPEC • 15-Ton SA 17" SPEC • 15-Ton SA 9" SPEC • 30-Ton DA

Quote Summary 0

No selections yet. Set quantities to see them here.

Selected crib jack items and quantities
Item	Qty	Action

Hover or focus an item to preview

Double acting jacks speed your projects up by retracting with hydraulic pressure

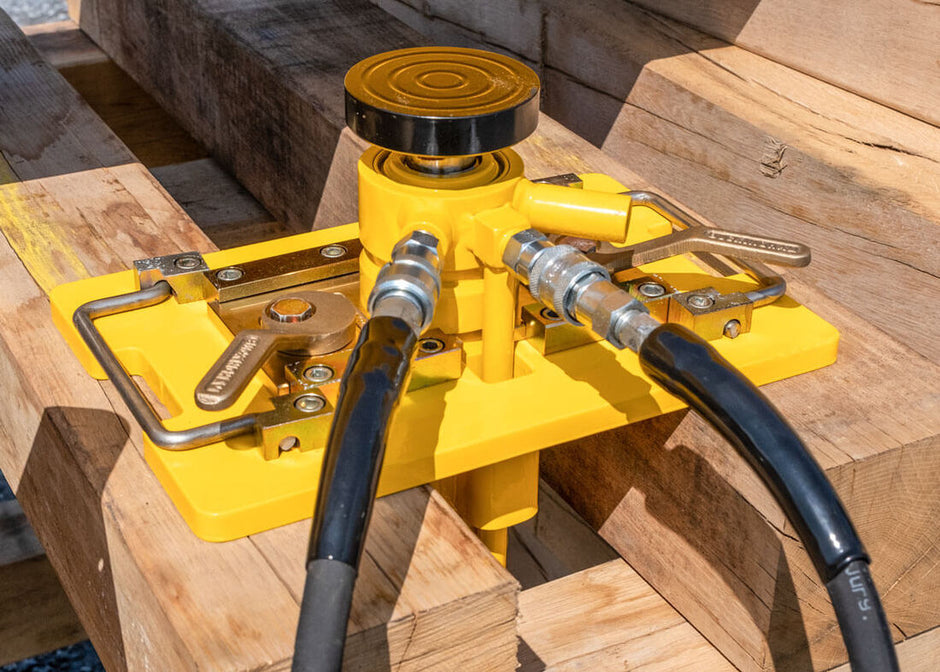

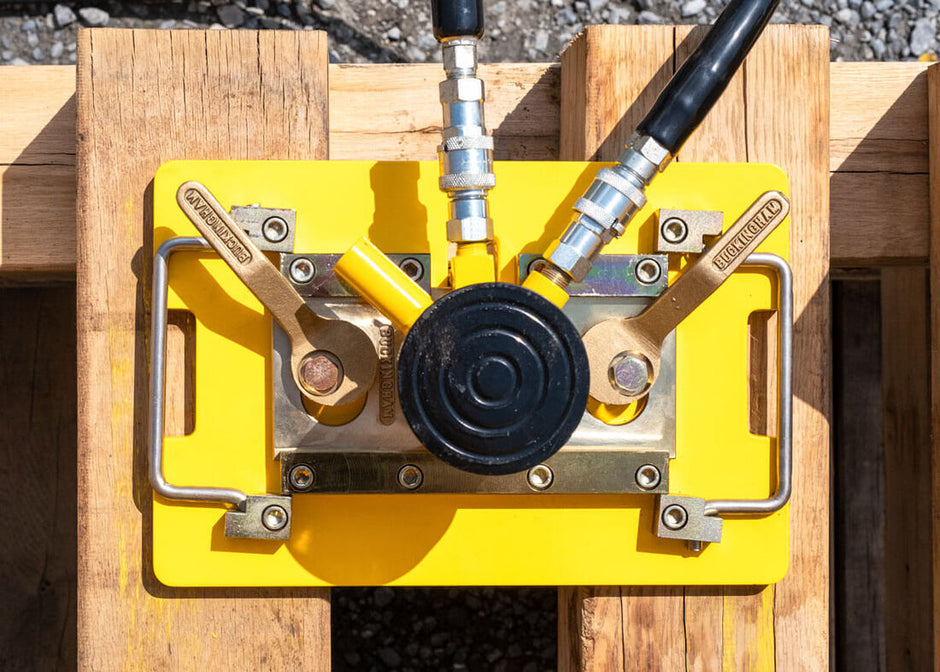

Our Heavy Duty lightweight crib jack base is low profile and features easy lifting handles

Add description text to provide more info to your customers.

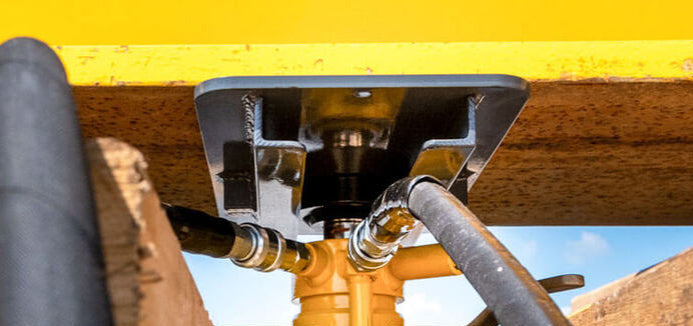

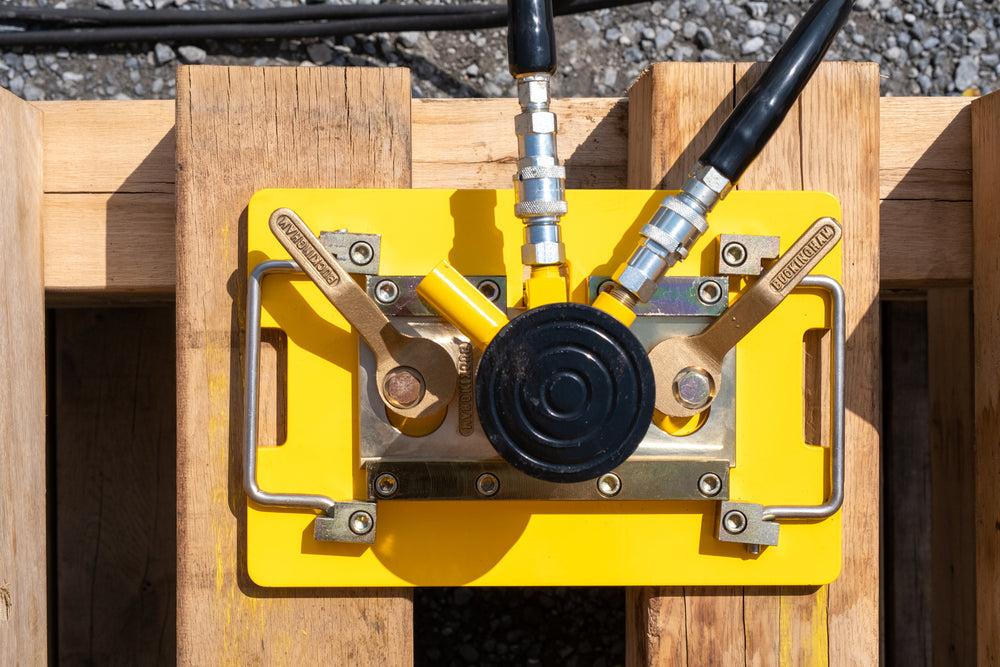

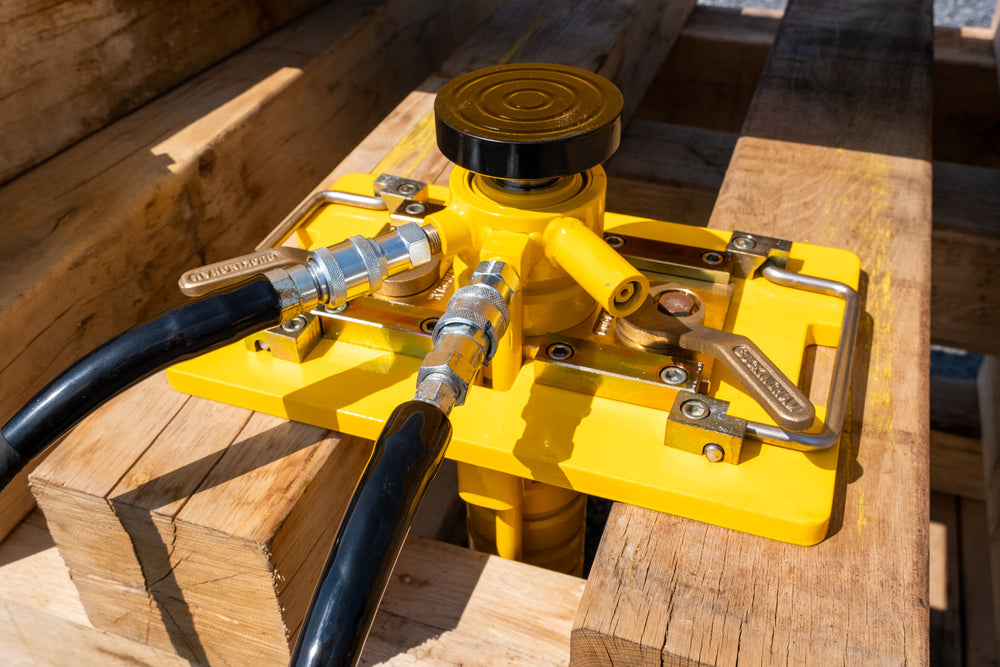

A jack return plate is clamped to the beam, allowing for retraction of the jack

PSI x 4.906 / 2000 = tons per cylinder

2.5" bore

PSI XS

TONS XS

2.5" bore
PSI	250	500	750	1000	1250	1500	1750	2000	2250	2500	2750	3000	3250	3500	3750	4000	4250	4500	4750	5000	5500	6000	6500	7000
TONS	.61	1.23	1.84	2.45	3.07	3.68	4.29	4.91	5.52	6.13	6.75	7.36	7.97	8.59	9.2	9.81	10.43	11.04	11.65	12.27	13.49	14.72	15.94	17.17

PSI x 9.616 / 2000 = tons per cylinder

3.5" bore
