Jack and Slide System

Buckingham Slide System

Crane-free, low-profile hydraulic skidding for tight, high-stakes moves.

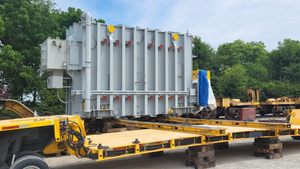

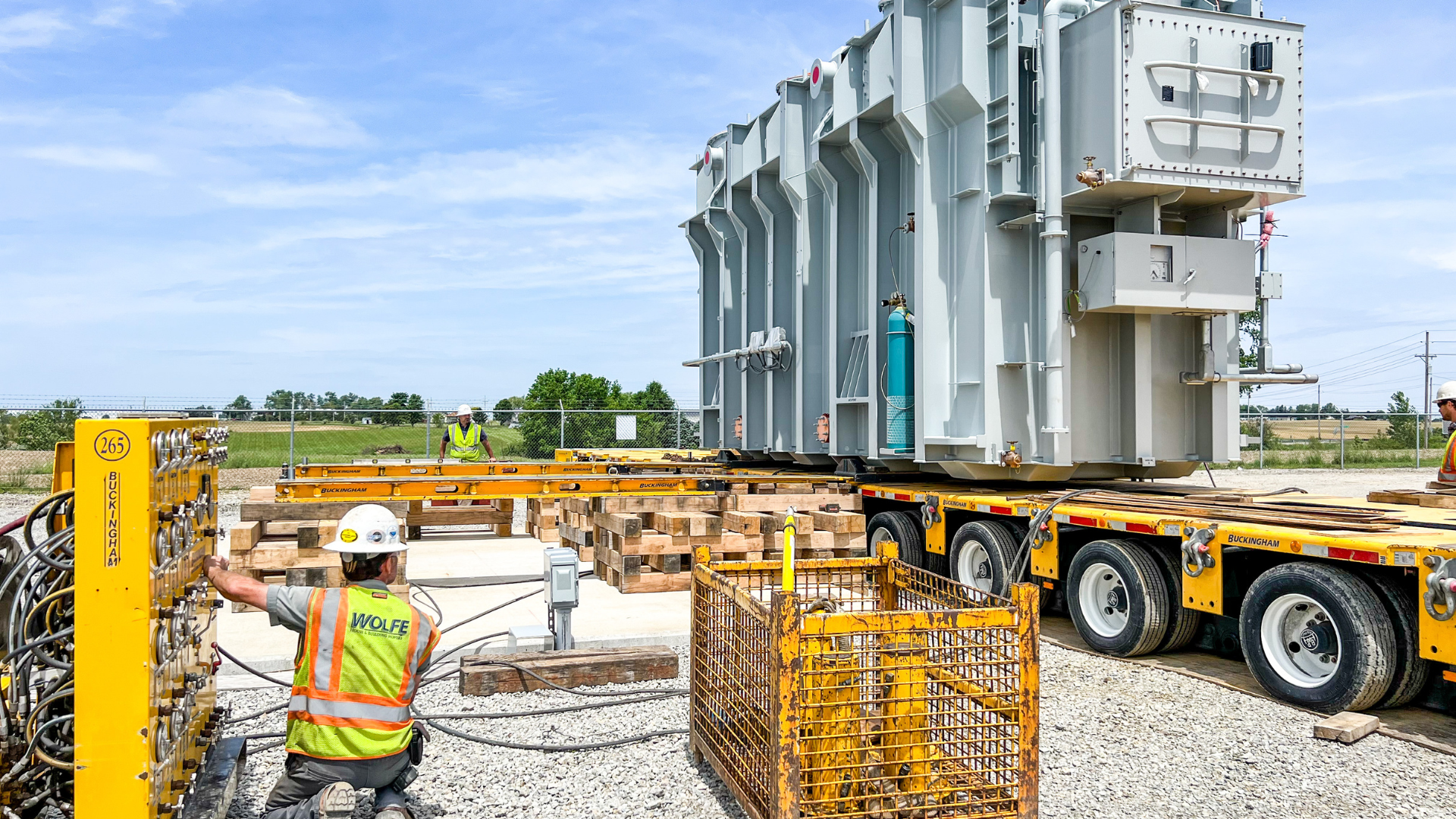

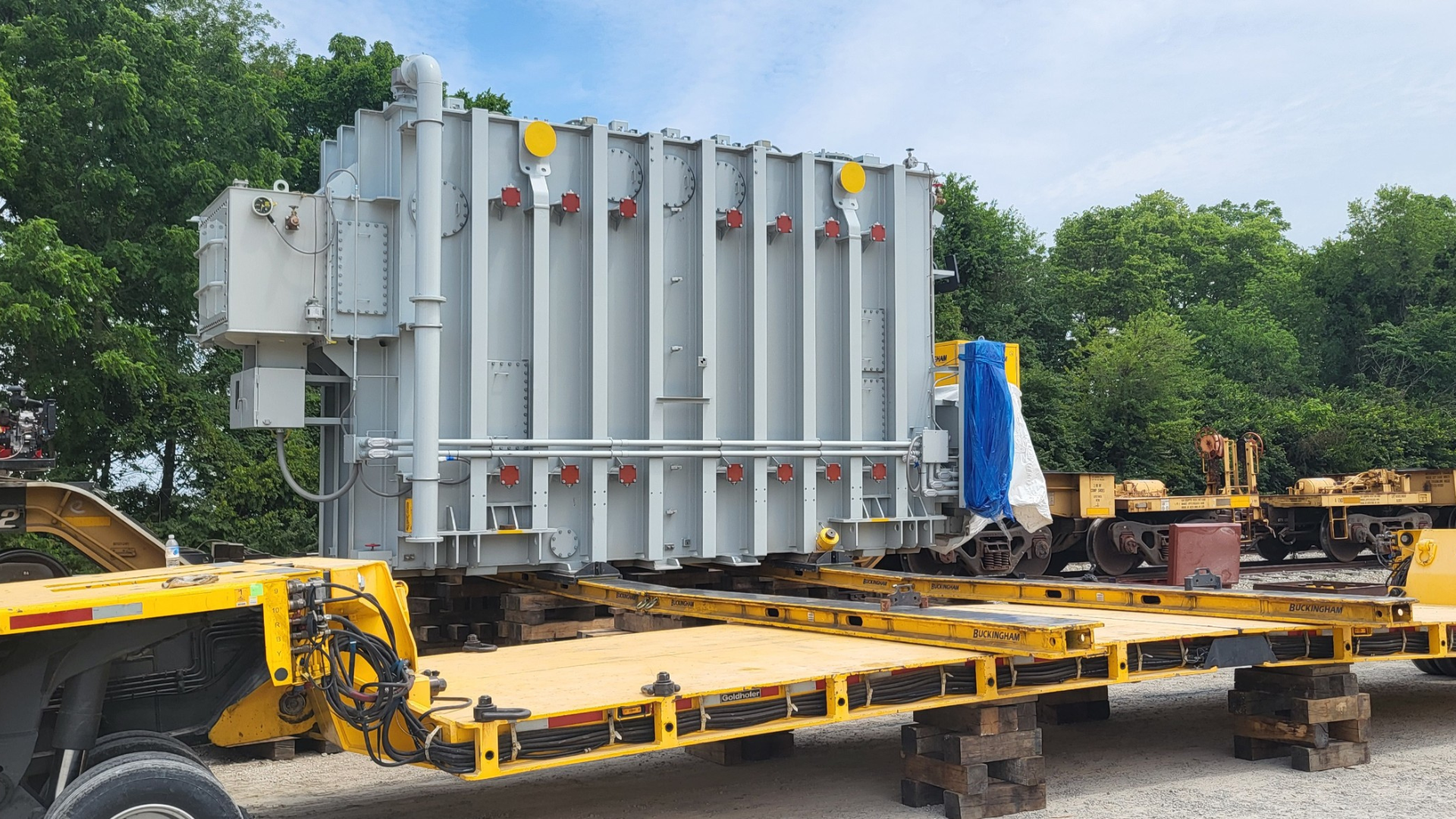

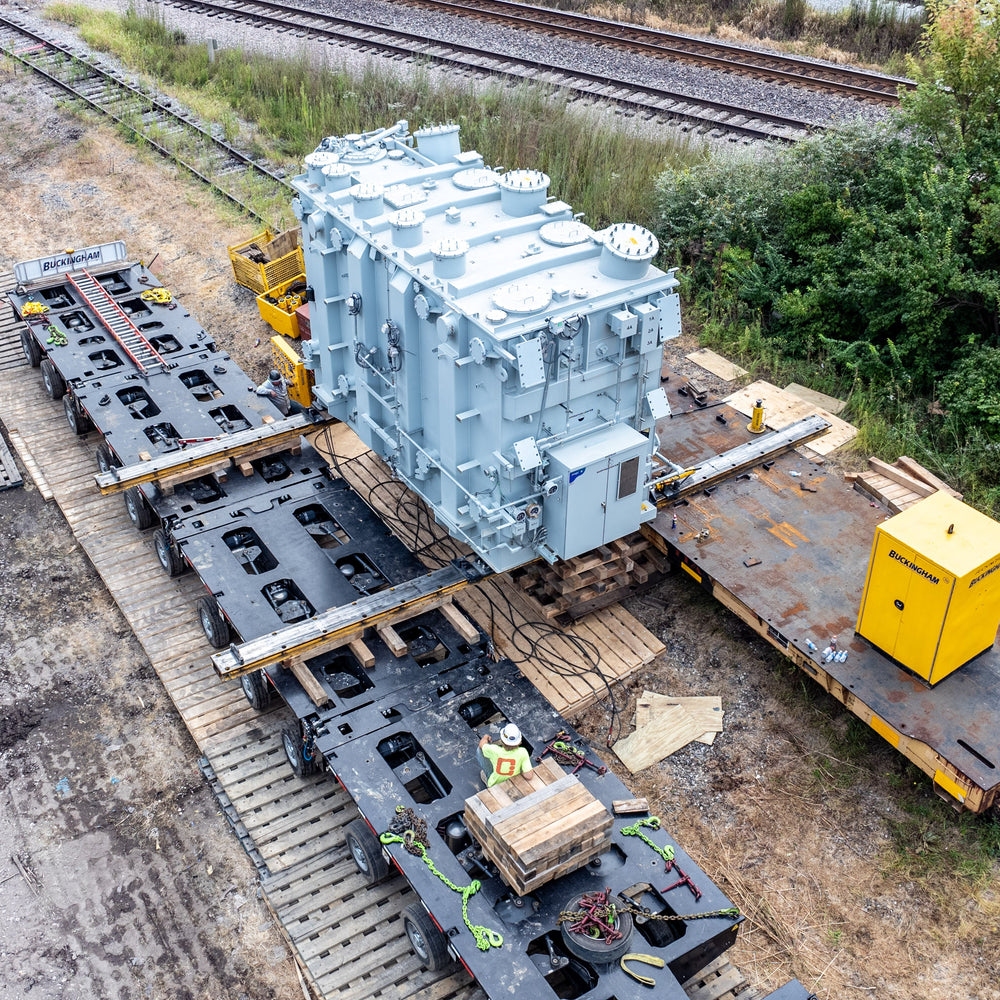

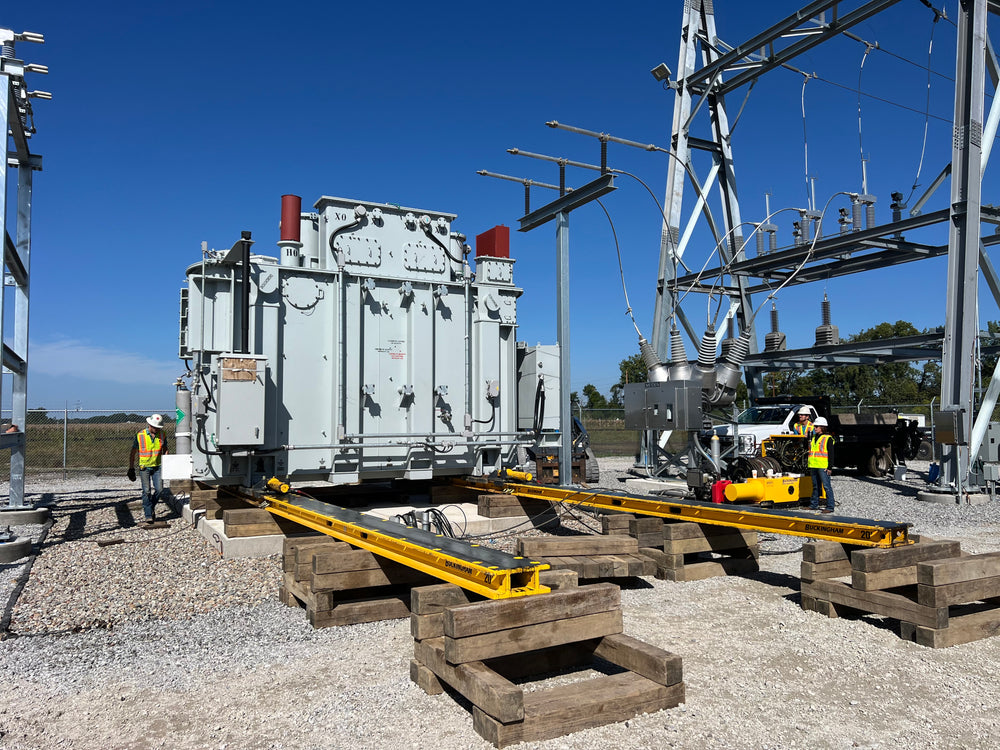

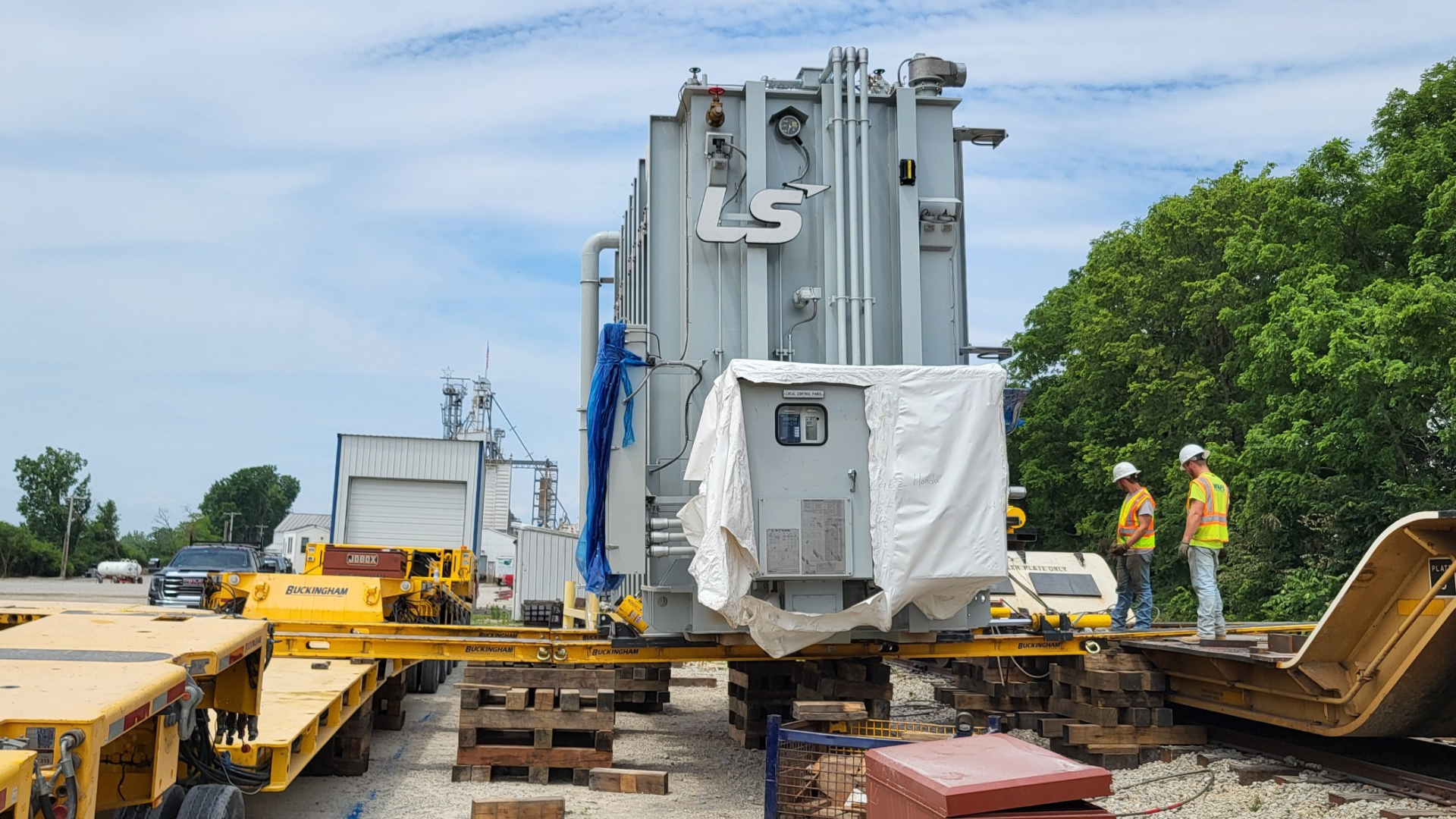

Buckingham Jack & Slide Systems give you a safer, simpler way to move heavy equipment when space is limited or a crane isn’t practical. Built and tested in the USA—and used daily by our team in the field—each system is configured to your load, site constraints, and rigging plan so you can position transformers, switchgear, machinery, and other sensitive assets with confidence.

JACK AND SLIDE SYSTEM

KEY FEATURES

push-pull control

Low friction, high protection

Positive mechanical locking

Modular to the site

Quick Handling on site

50-ton, 10,000-psi cylinders advance and retract to move the load forward or back with precise control—no “commitment” moves.

A 2" steel slide topped with¼" stainless and an oil-impregnated nylon shoe base delivers a smooth, controlled glide while resisting wear and contamination.

Spring-loaded auto-reset pins lock every2' on center and automatically reset as the cylinders cycle, adding a mechanical layer of safety between strokes.

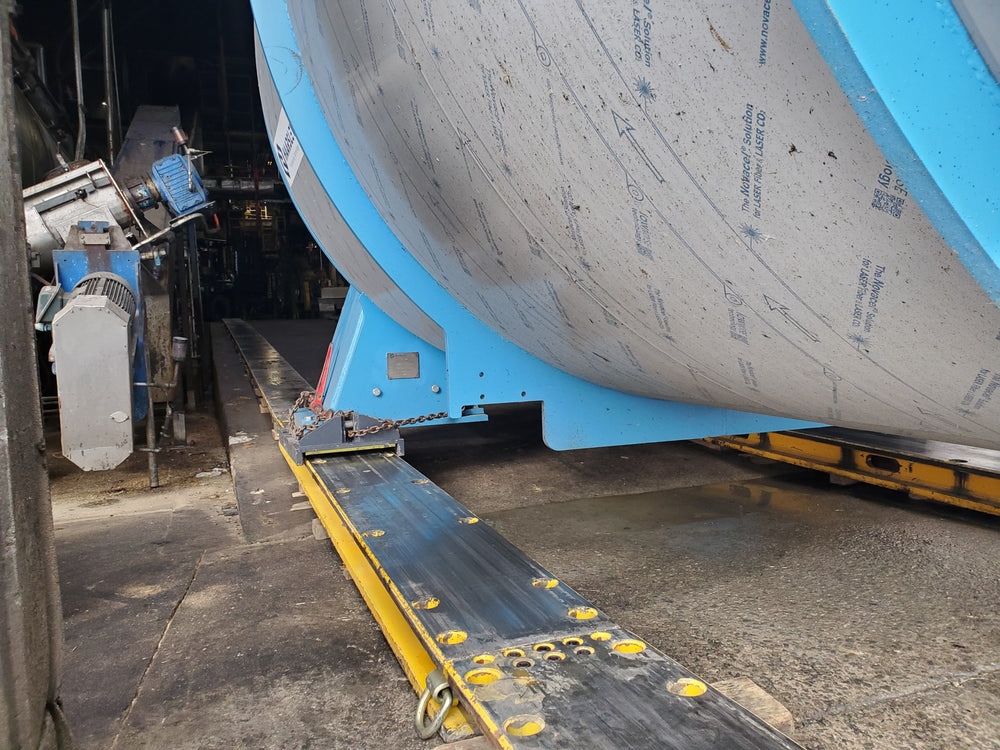

6" high-strength I-beam slides(span oil-containment ditches and uneven gaps) with 2" low-profile plates (lightweight, ideal for ramp tops/bottoms) to match the job.

Detachable push cylinder & shoe pin together for use and separate for easy manhandling; screw-in lifting rings and an optional fork plate speed staging and repositioning.

JACK AND SLIDE SYSTEM

Components

Proprietary push shoe

Spring loaded auto reset pins

Regular or low profile slides

50-Ton, 10,000-psi push/pull cylinder

Easy beam connection system

Screw-in lifting ring

Fork plate

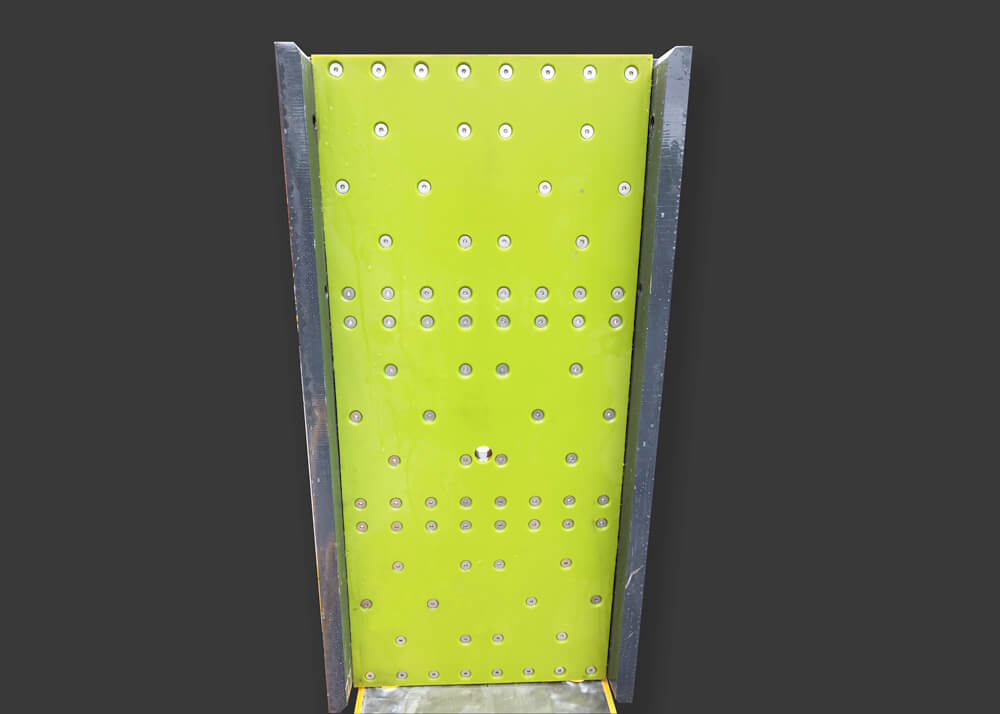

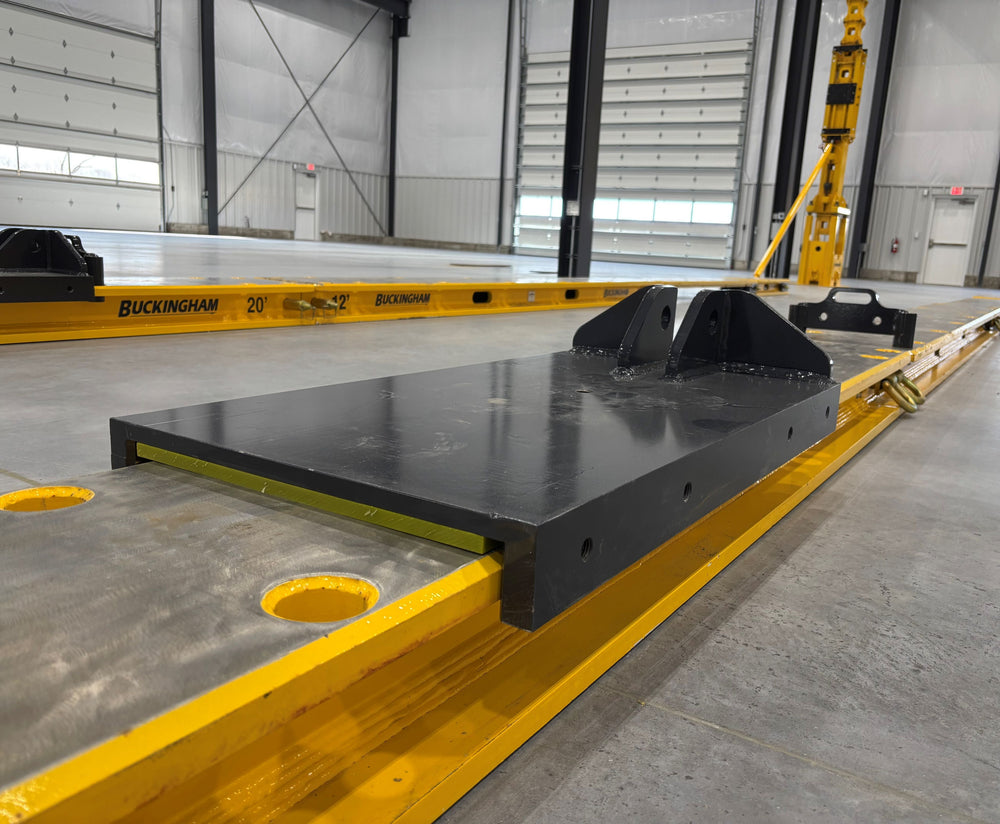

Buckingham's load shoe is the only one of its kind in the hydraulic slide industry, with a no-slip, low-maintenance shoe base surface for a safe, controlled slide.

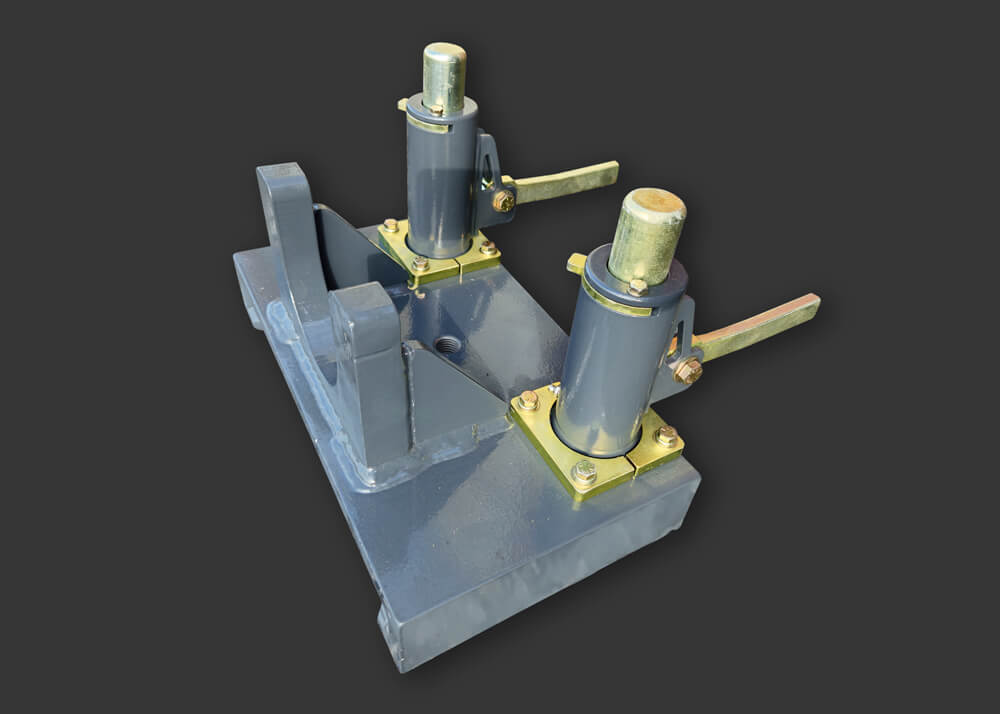

Spring-loaded auto-reset pins lock into place every 2' on center and are automatically reset by the jack & slide cylinders.

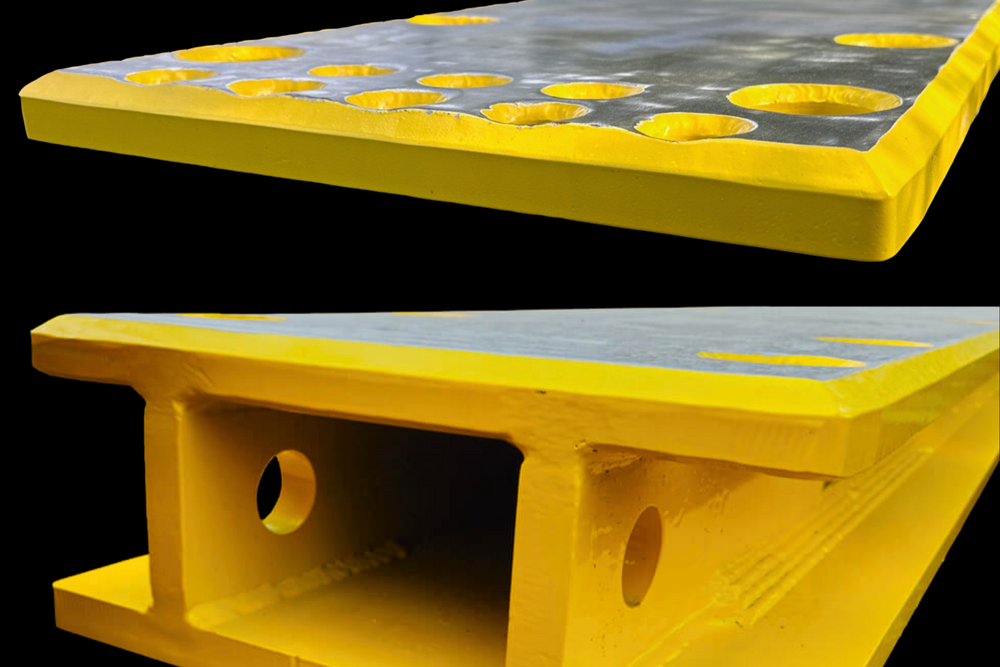

Our slides have a stainless steel slide surface and are available in 6" standard I-beam profile and 2" low profile slides

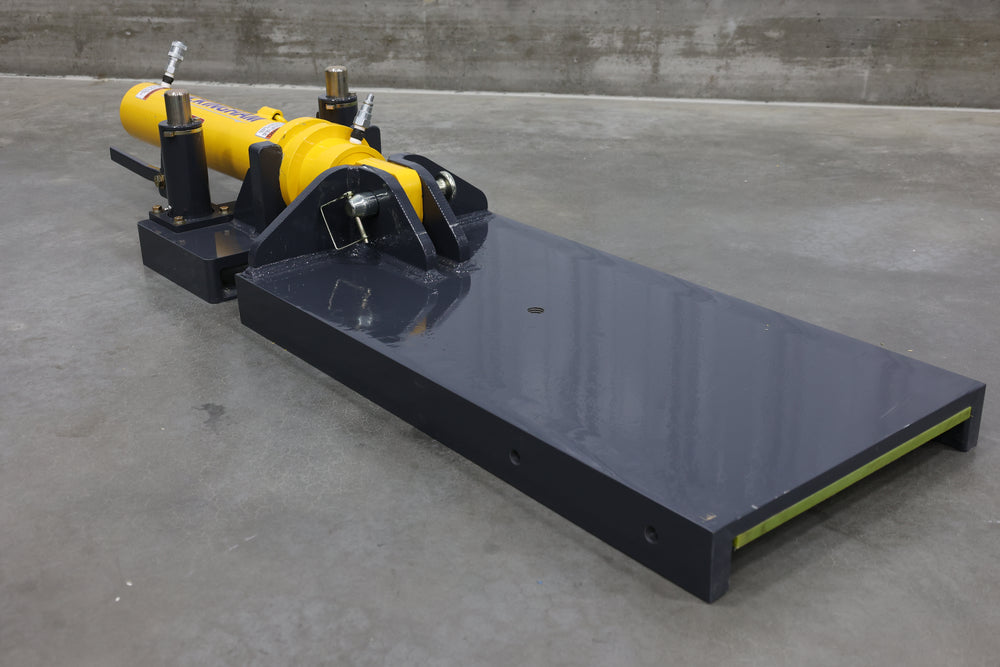

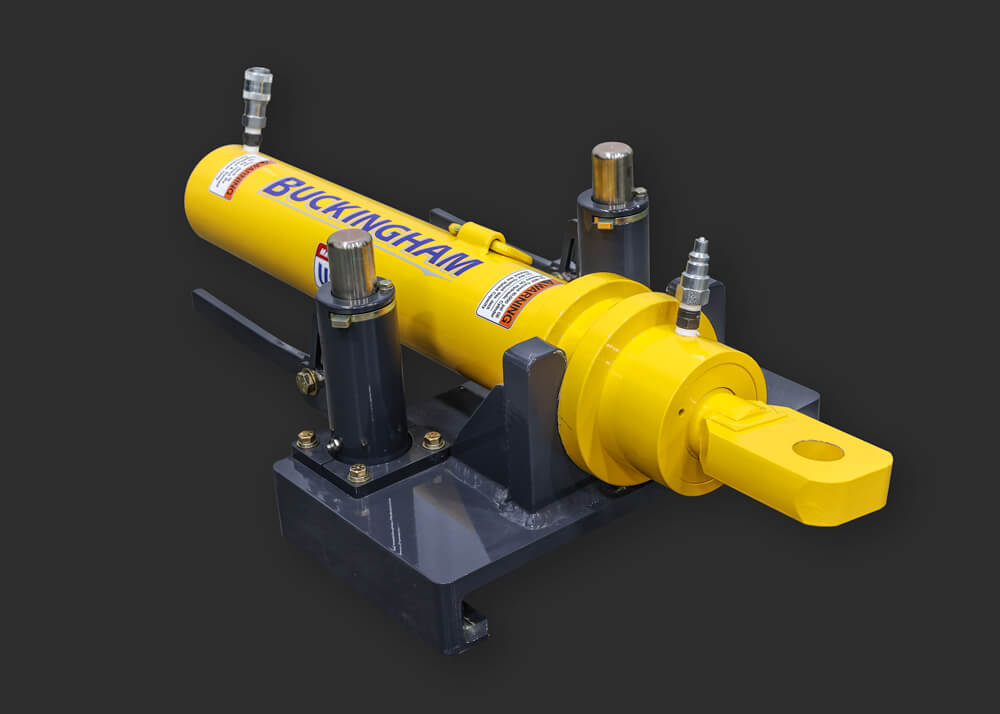

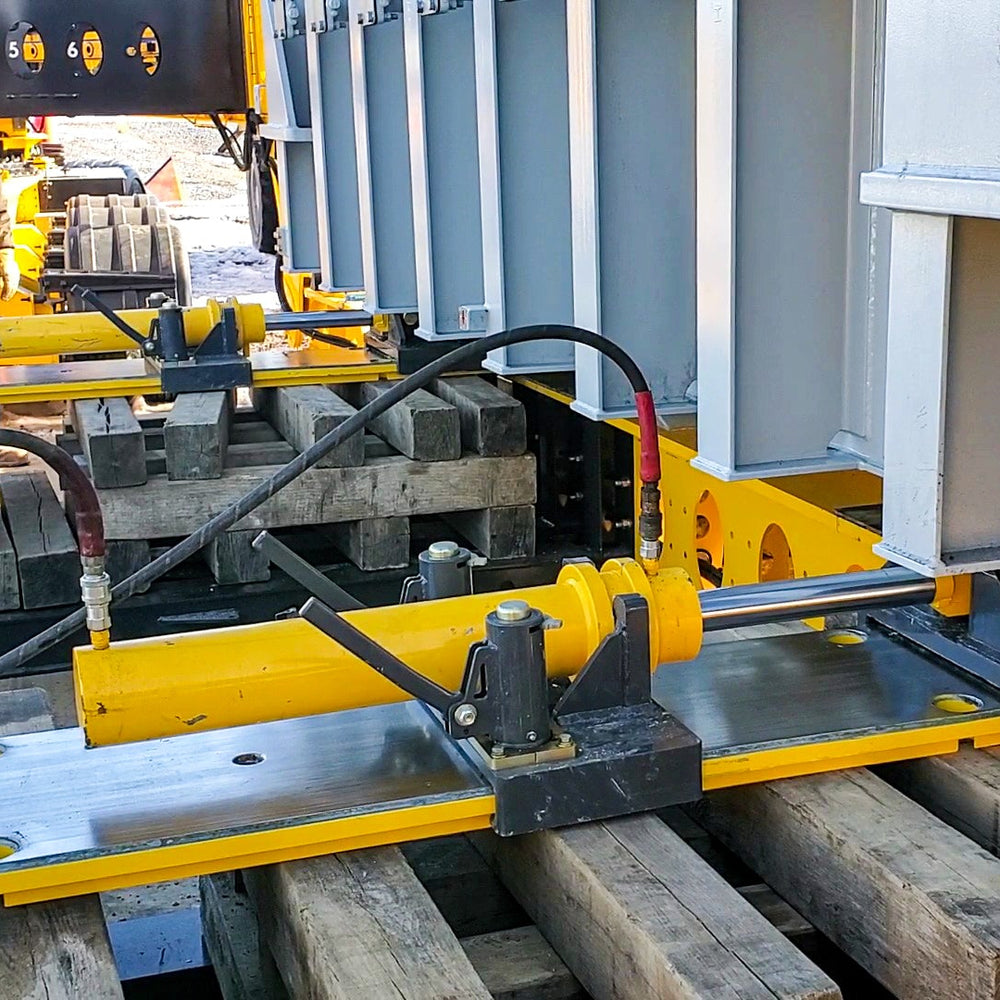

Our 50-ton, 10,000-psi cylinders effortlessly push or pull heavy loads over the slide beams and can be removed from the beams for ease of handling.

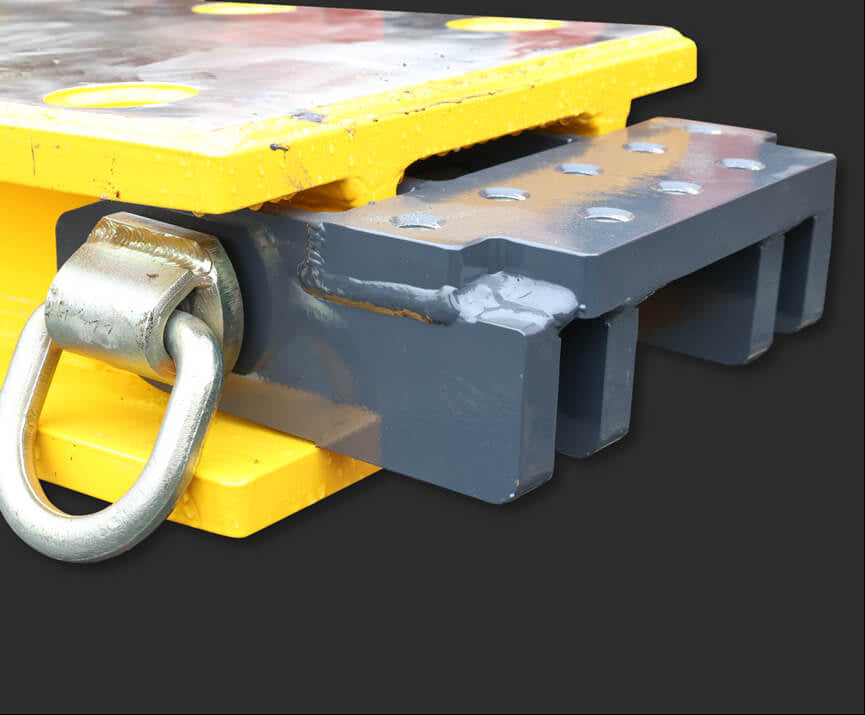

Buckingham's easy beam connection system allows our hydraulic slides to be easily customizable for varying work environments.

Screw-in lifting rings make it easy to move or reposition Buckingham plates and beams.

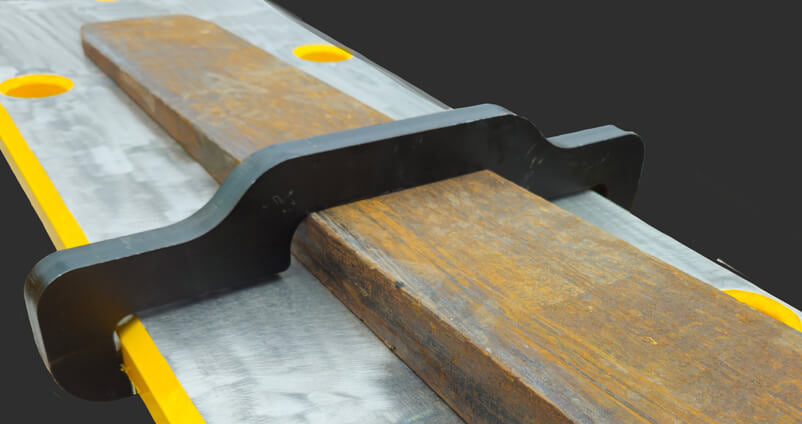

Our fork plate provides another option for moving Buckingham plates and beams.

CONFIGURE YOUR JACK & SLIDE SYSTEM

Beam Lengths by Profile (enter quantities)

Profile

Standard (6")

Profile

Low Profile Track (2")

Total length selected: 0 ft

SPEC + Load Capacity Diagram (PDF) Open Capacity Calculator

Hover or focus an option to preview

Quote Summary 0

No selections yet. Add quantities to see them here.

Category	Item	Qty	Action

Selections persist locally and won’t disappear if you open the calculator.

Capacity Calculator - Per Shoe

Pick Profile → L (support spacing) → A (shoe spacing). Download a CAD-style PDF with dimensions.

Profile

Support spacing, L (ft)

Shoe spacing, A (ft)

- - lb

Capacity vs A at selected L

L (ft) v / A (ft) >

-
