SMART STEER DOLLY SYSTEM

SmartSteer® Dolly System

Buckingham SmartSteer® Advanced Dolly System

The SmartSteer® Advanced Dolly System is a configurable load-moving solution for the structural moving, rigging, and manufacturing industries. It links multiple Buckingham Power Units and Dollies to match the weight, size, and footprint of the load. The system is designed for tight access, large sites, and complex moves where precision steering is required.

Smart Steer System

Key Features

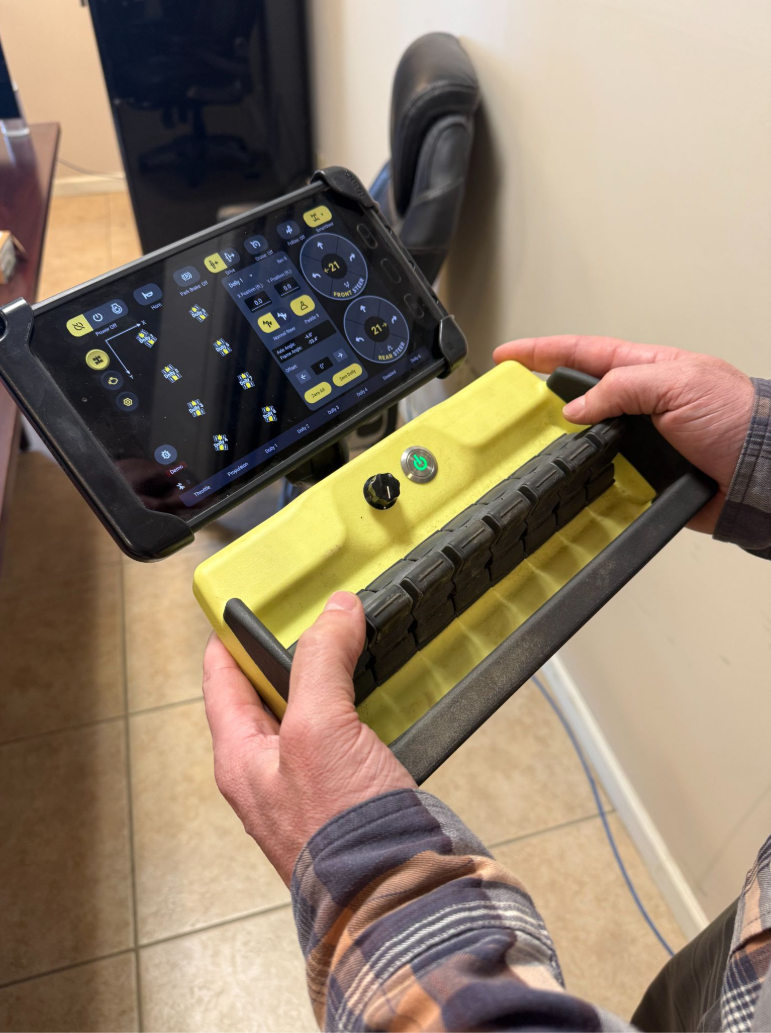

Touch-Screen Tablet Control

Steering Modes

Manual Override

Modular capacity building

Capacity & Scalability

Efficiency Advantages

Operator-friendly controls

Versatile applications

Front and Rear Steer, Articulated Steer, and Follow Steer.

Radio remote controls drive, jacking, braking, and steering when SmartSteer® mode is off.

Combine with Buckingham Coaster Dollies to increase total load support without sacrificing control.

Multiple power units can be linked for more dolly capacity.

X/Y coordinate-based setup for accurate positioning.

Eliminates tie bars and come-alongs.

on-the-fly frame offset adjustments

Intuitive setup and adjustments minimize changeovers between moves.

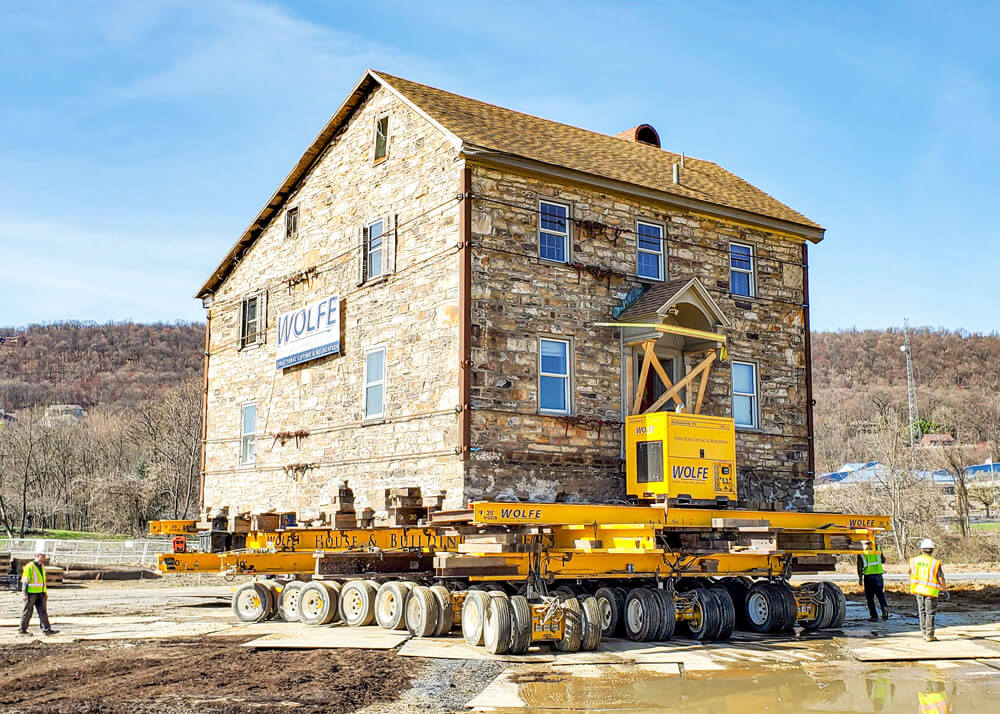

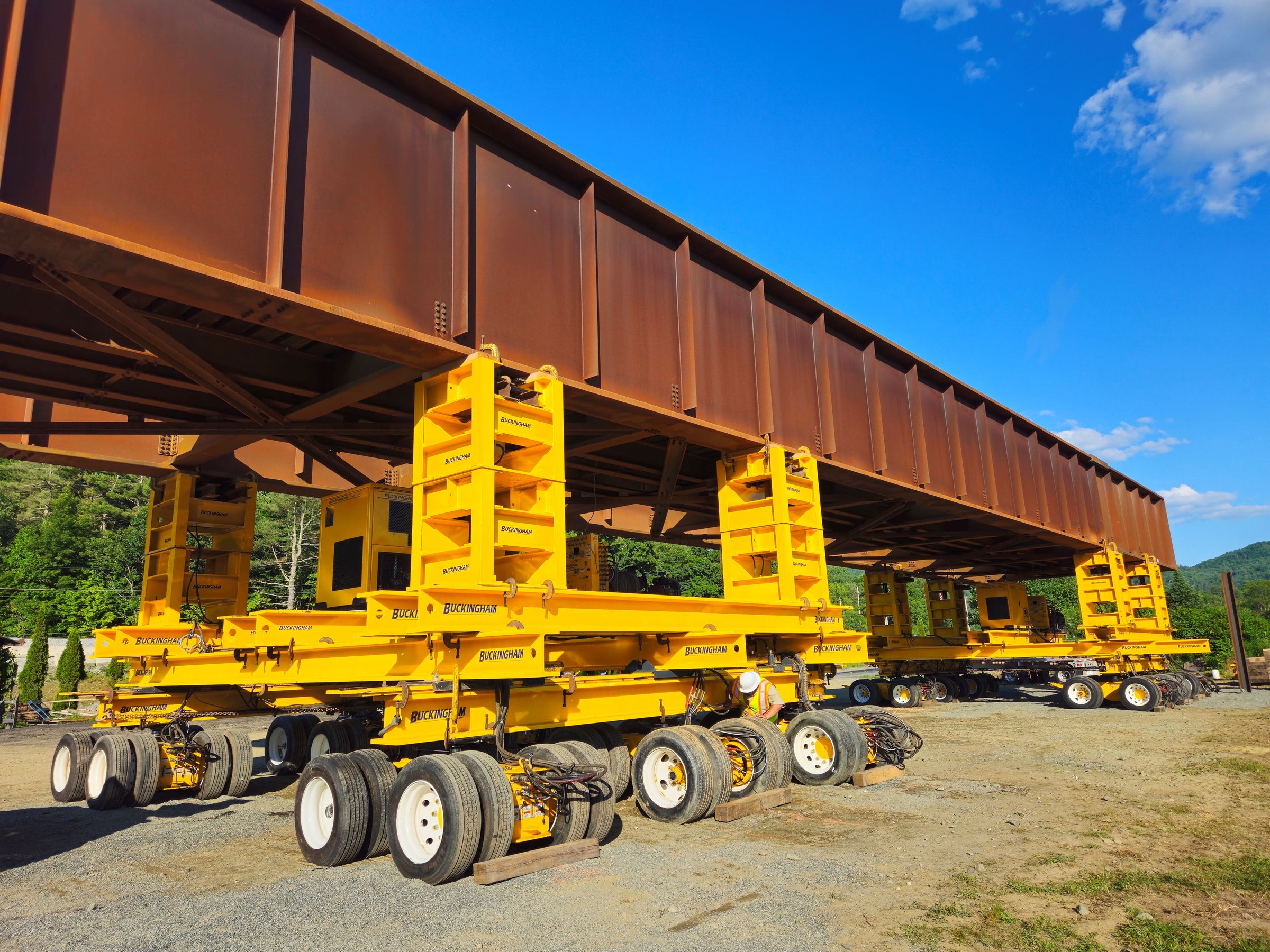

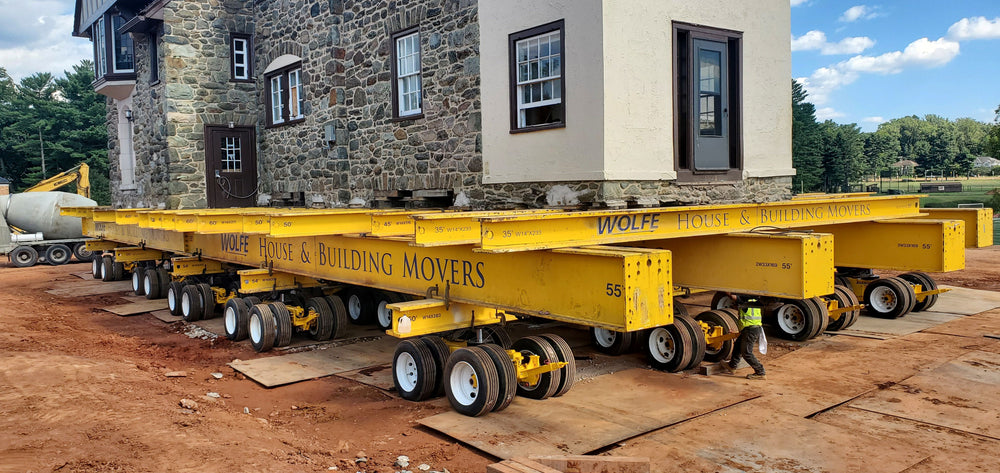

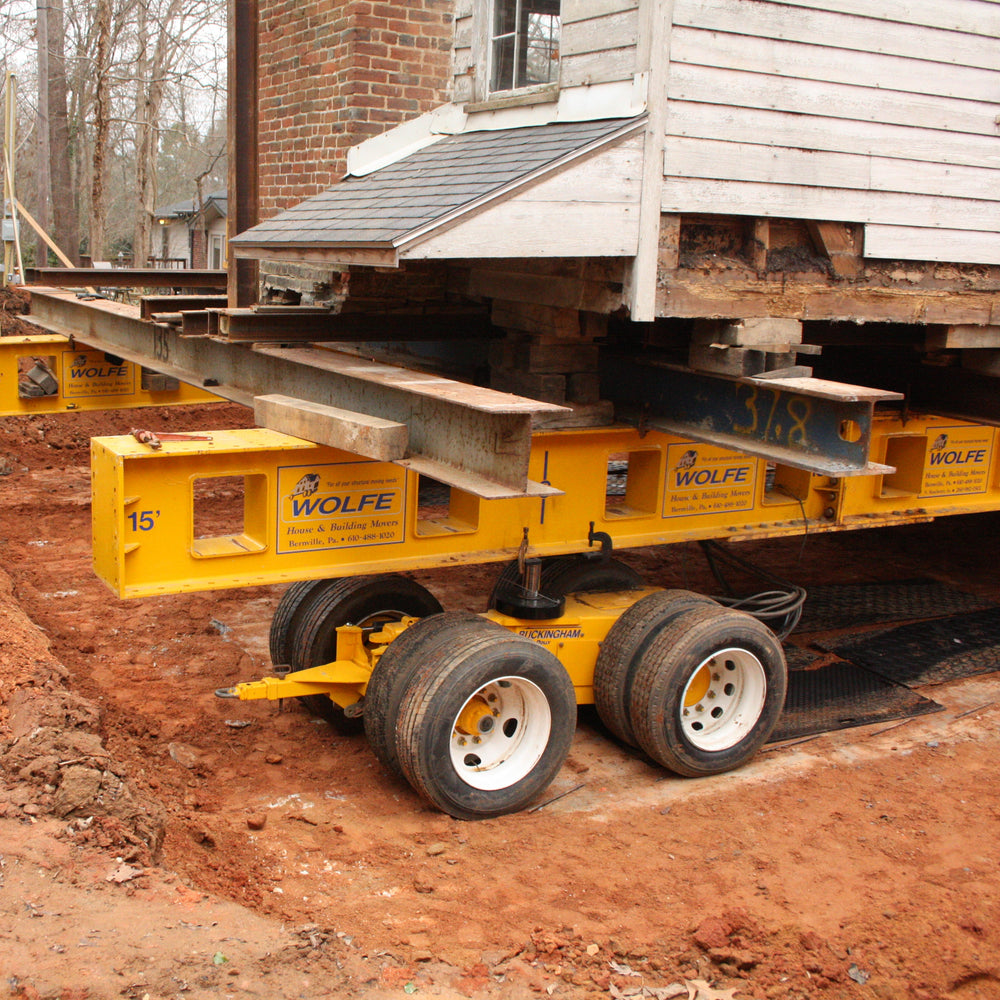

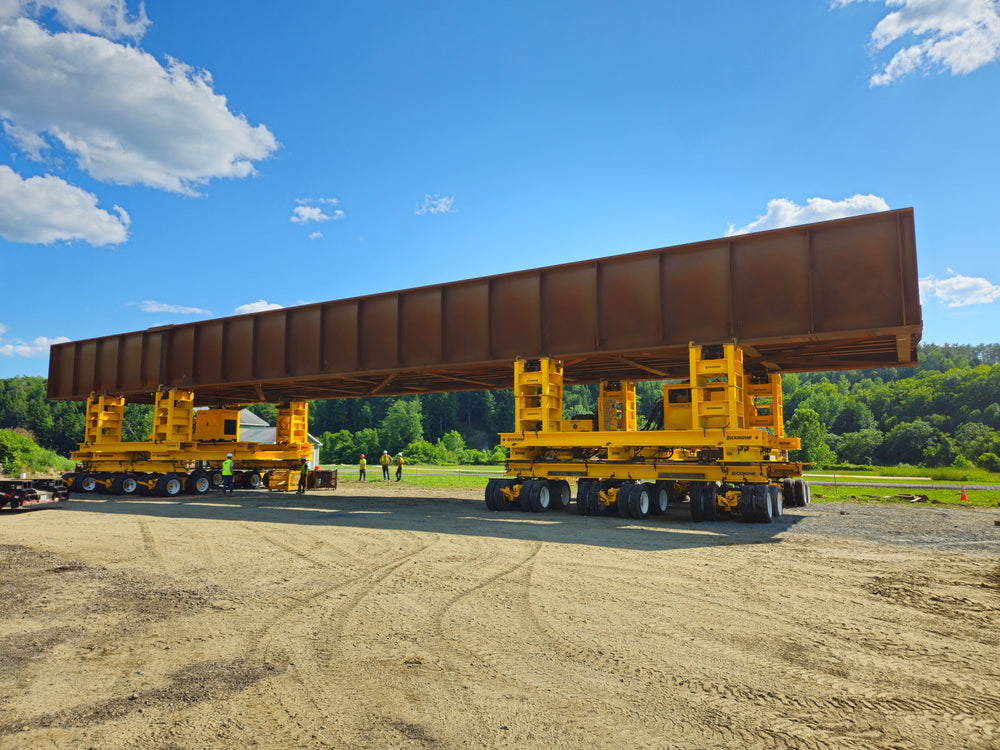

Ideal for house moving, plant relocations, transformers/generators, bridge components, and modular building sets.

BUCKINGHAM DOLLIES — system configuration

Build Your System

How many dollies do you need?

Not sure how many? Start with at least three, then add more for load distribution if needed.

How many power vs coaster dollies?

Buckingham Power Dolly

Buckingham Coaster Dolly

Target: 0 • Allocated: 0

Heads-up: We build with SmartSteer by default for synchronized steering and precision control.

Choose power unit(s)

Power Unit — BU-74

(supports up to 9 dollies)

Power Unit — BU-173

(supports up to 12 dollies)

Which one? BU-74 is compact for lighter loads/shorter runs. BU-173 has higher flow & duty cycle for heavier, continuous moves or multiple power dollies.

SPEC — Power / Coaster Dollies (PDF)

Buckingham Dollies
