TOE JACKS

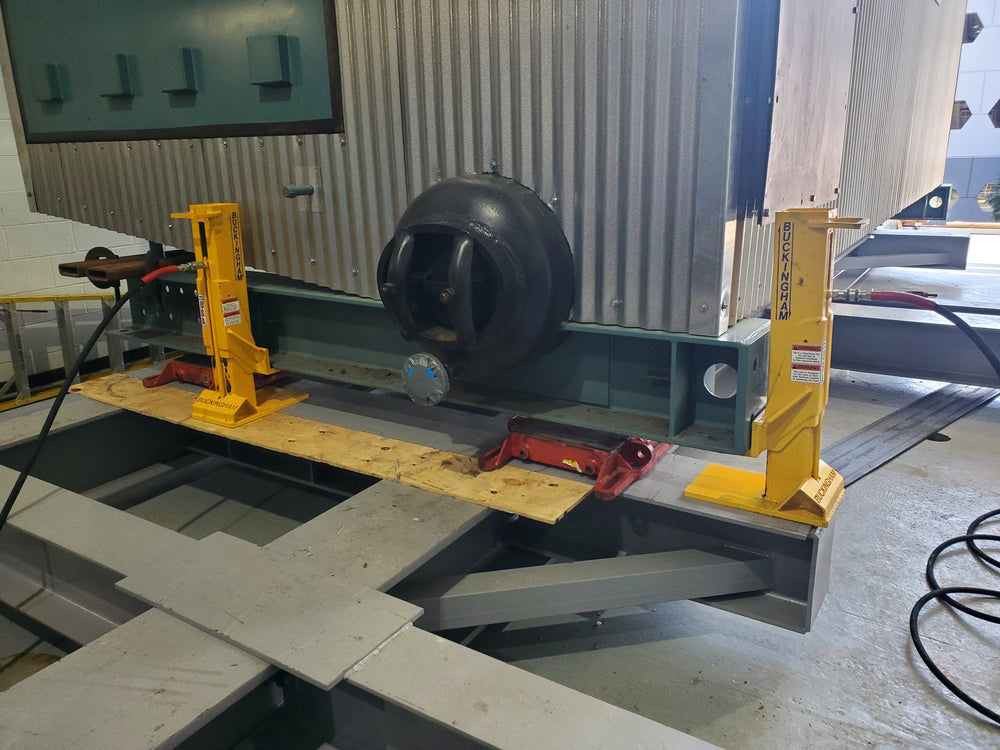

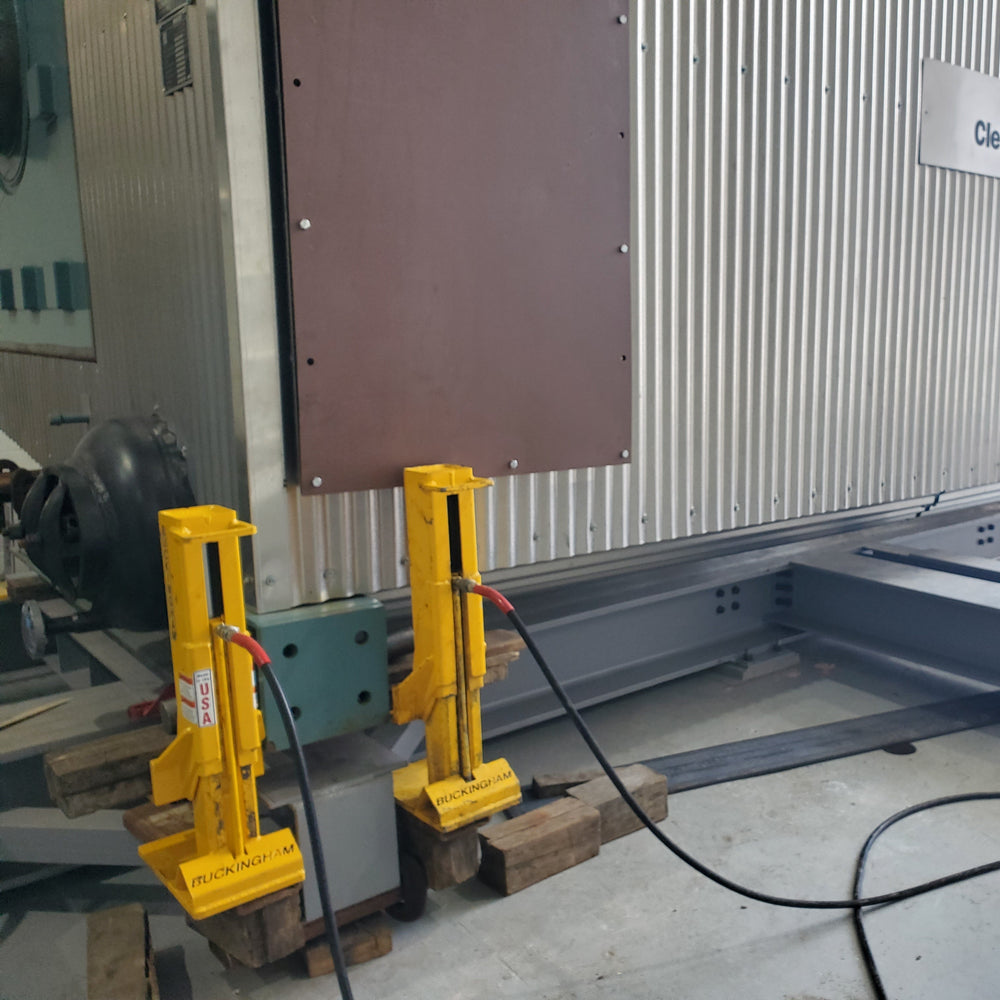

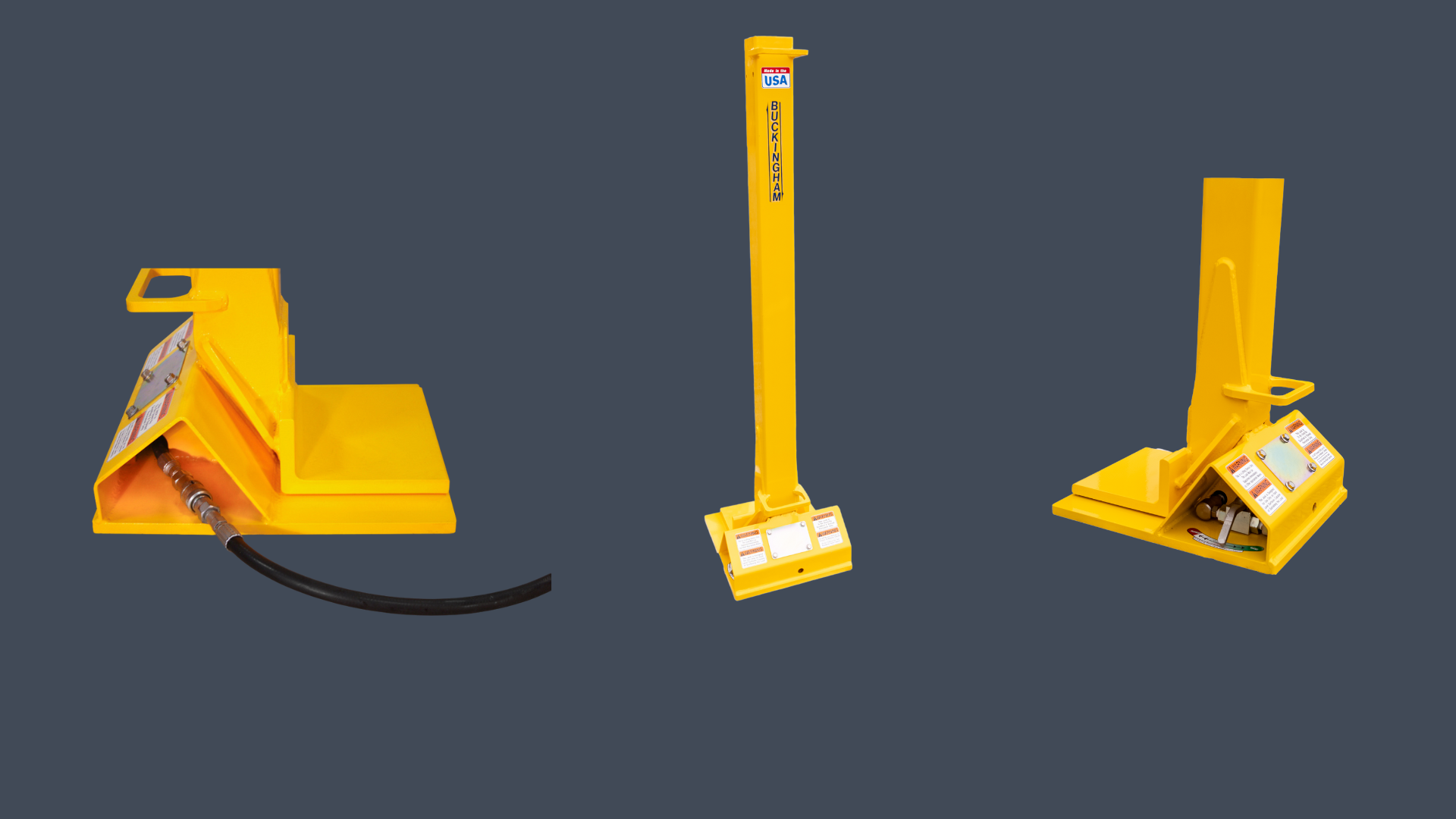

Toe Jacks
Buckingham Toe Jack Systems

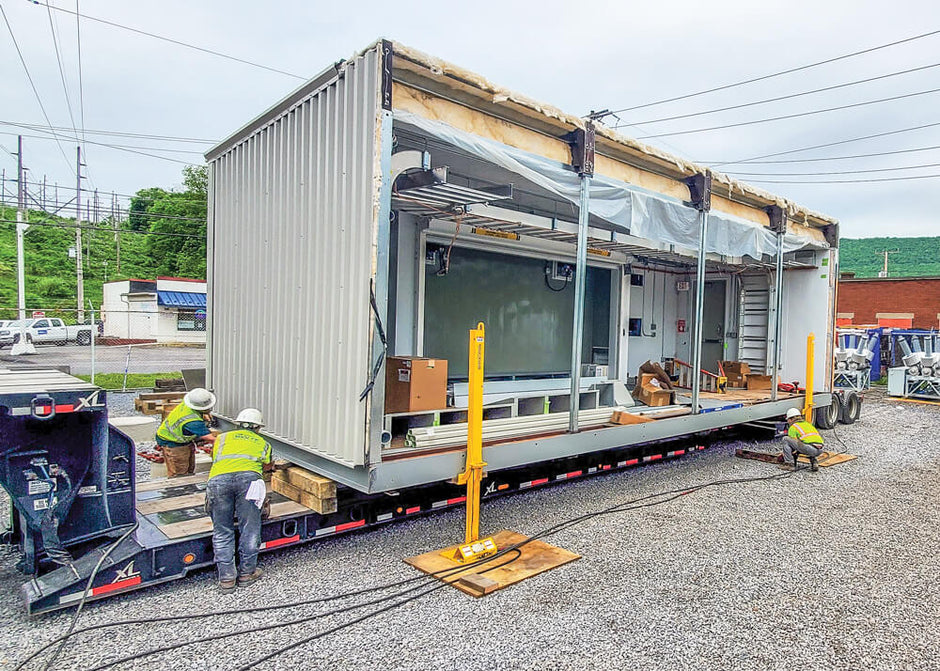

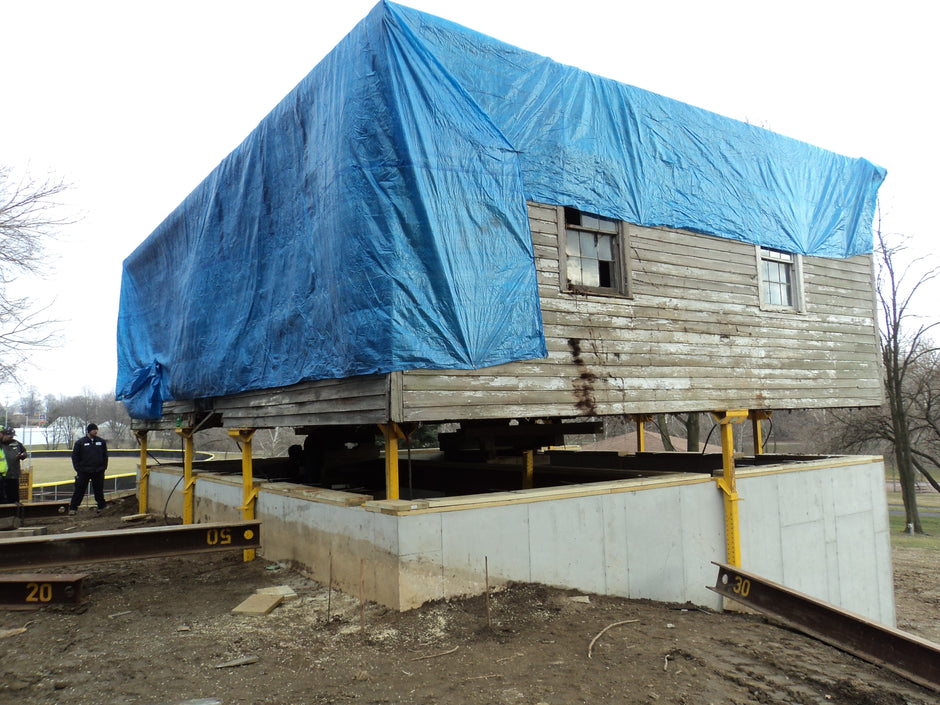

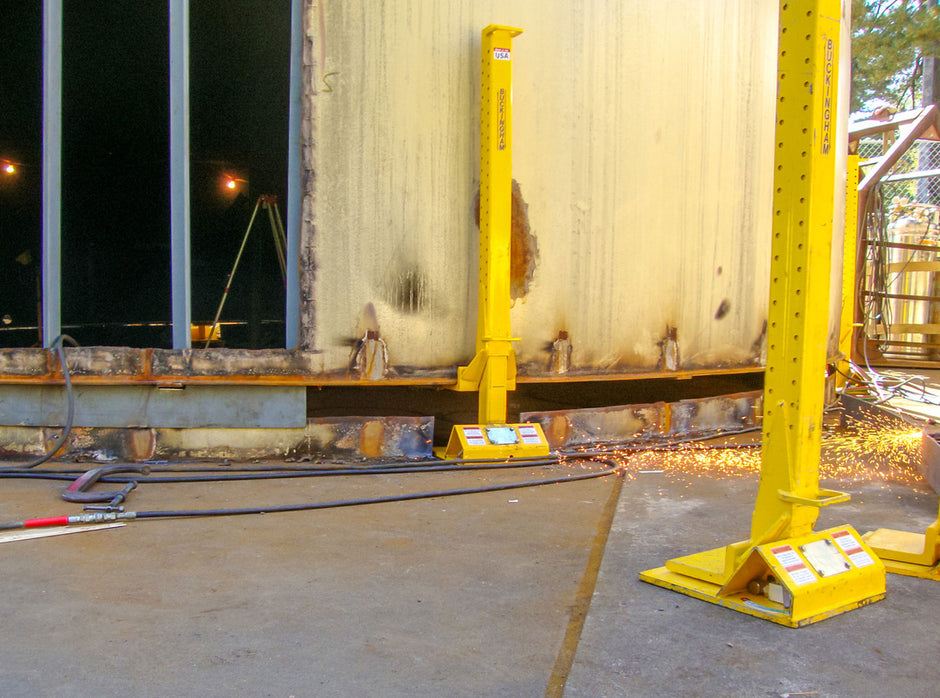

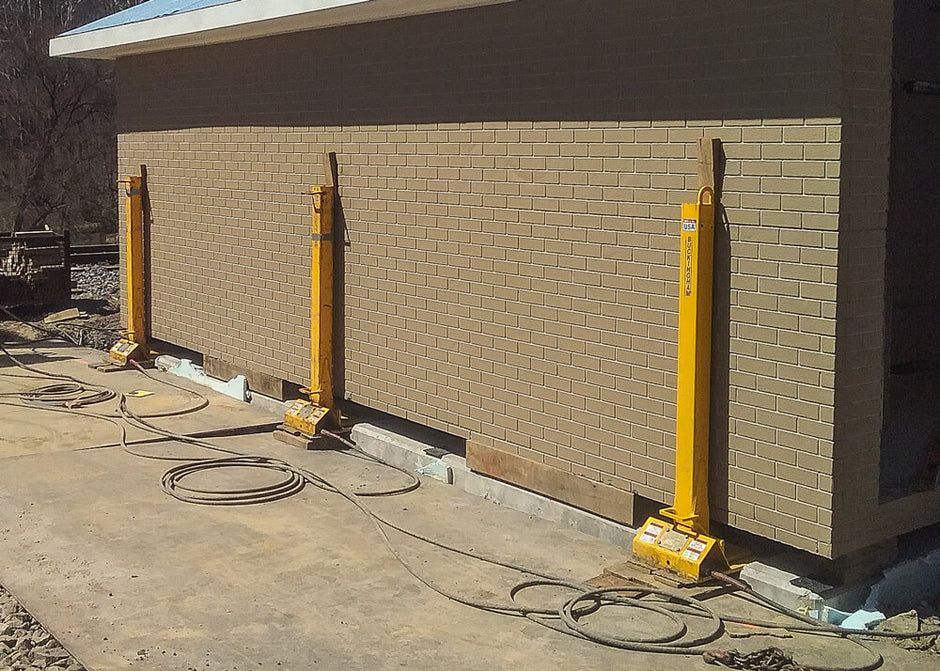

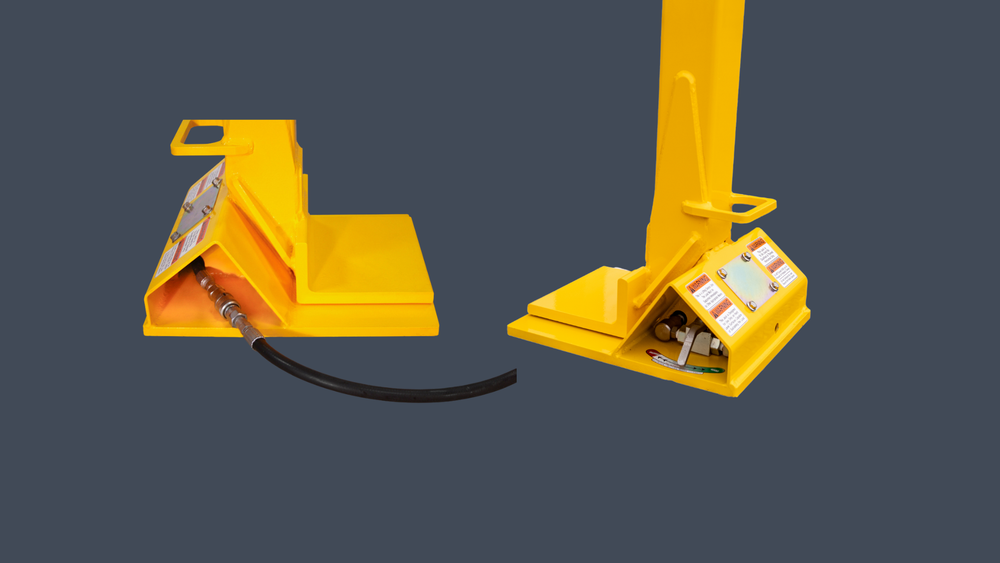

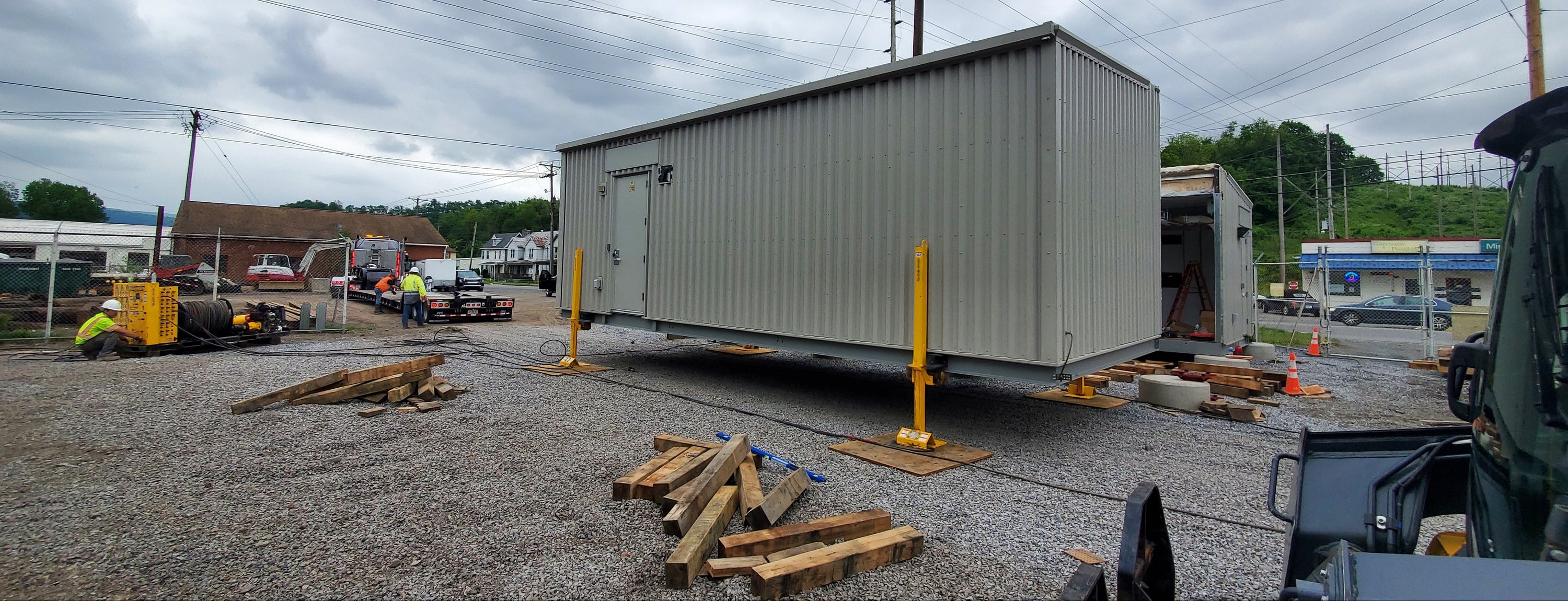

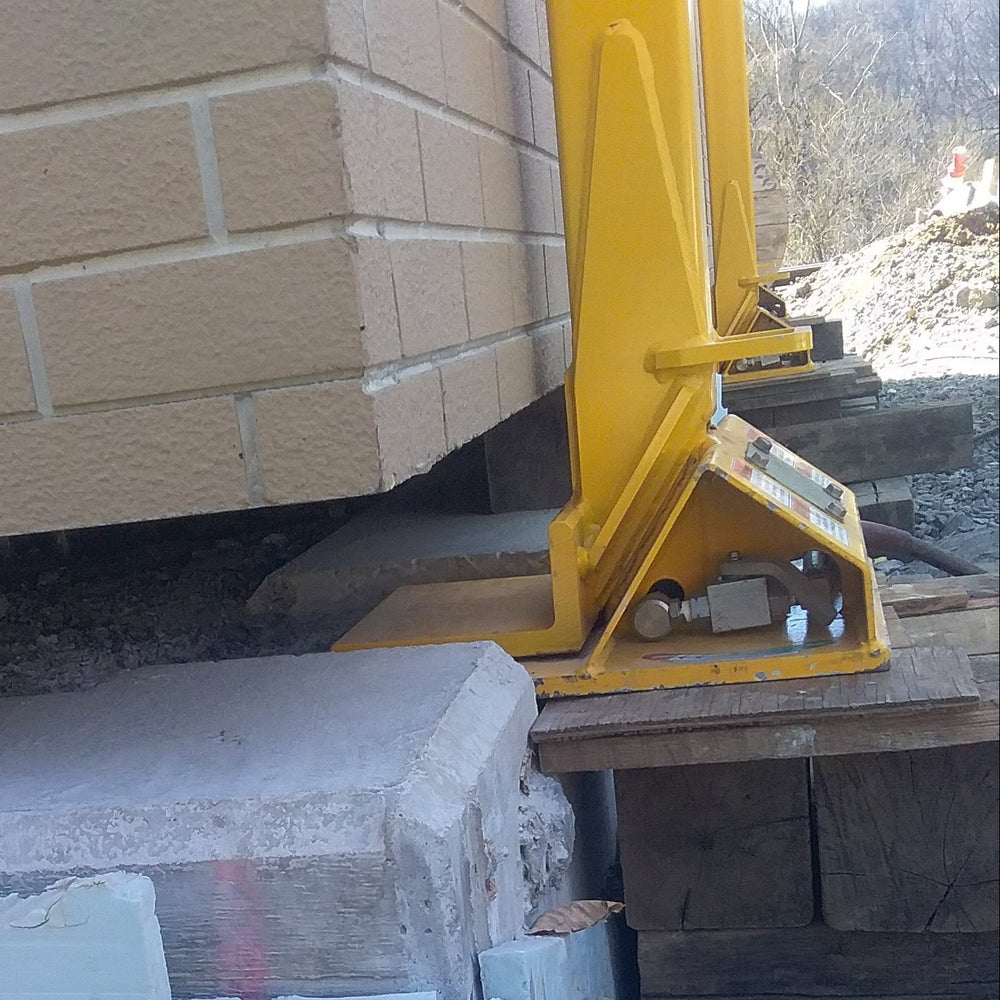

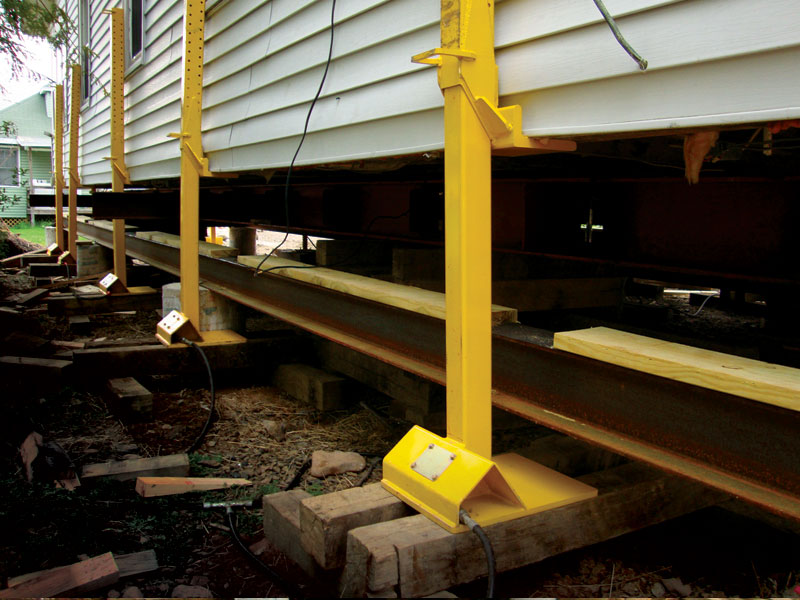

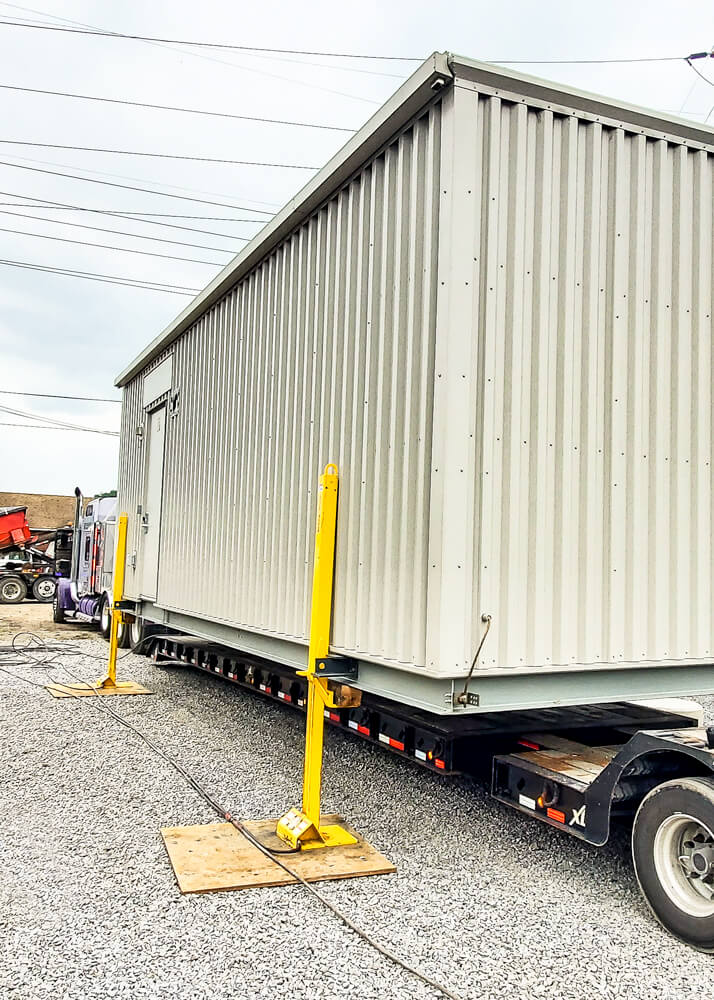

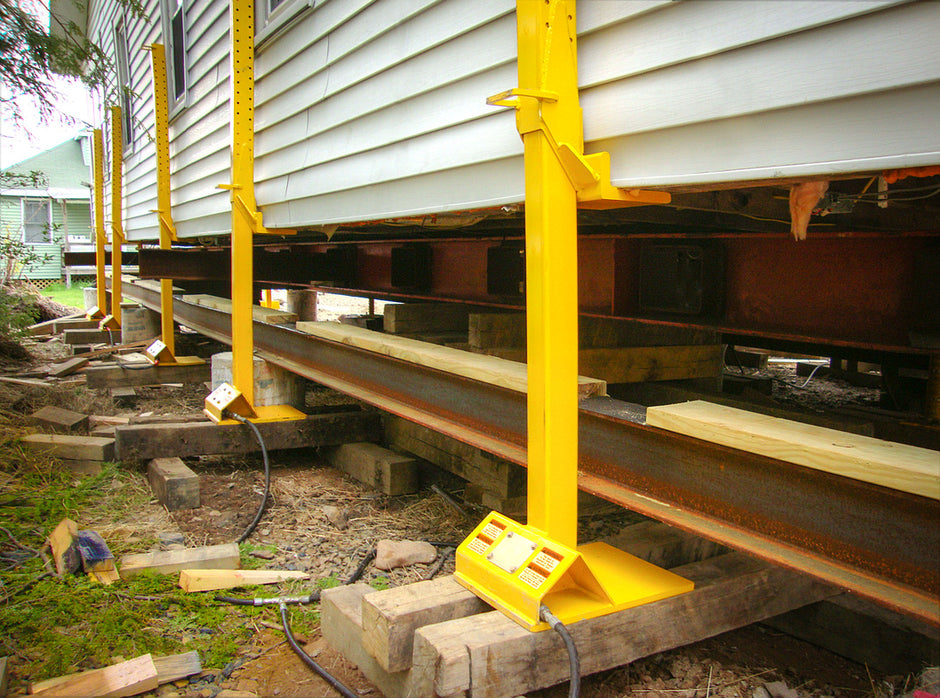

Get out of a tight spot with Buckingham Hydraulic Toe Jacks that need only 1 ¾" of clearance at the toe. Whether you’re supporting a steel frame substructure or lifting a modular, these heavy-duty jacks deliver reliable, controlled lifts up to 44". Each jack is rated 7 ½ tons, uses a 2 ½" bore to match standard Crib Jacks for uniform systems, and weighs 242 lbs.
key features
Ultra Low Profile
Capacity
Compatibility
Protection

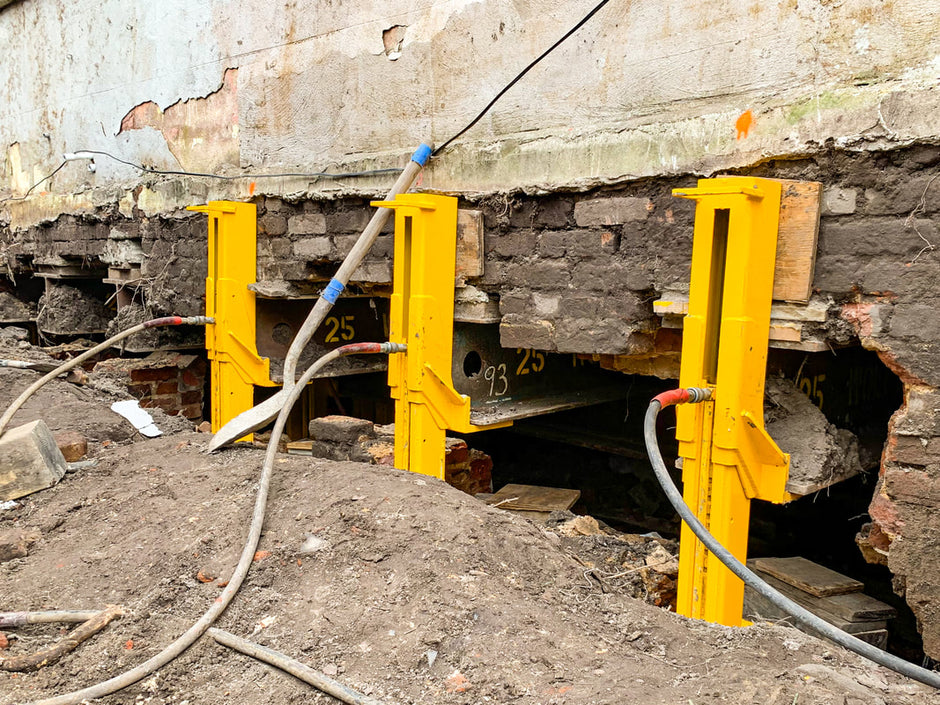

Toe Jack Adaptors

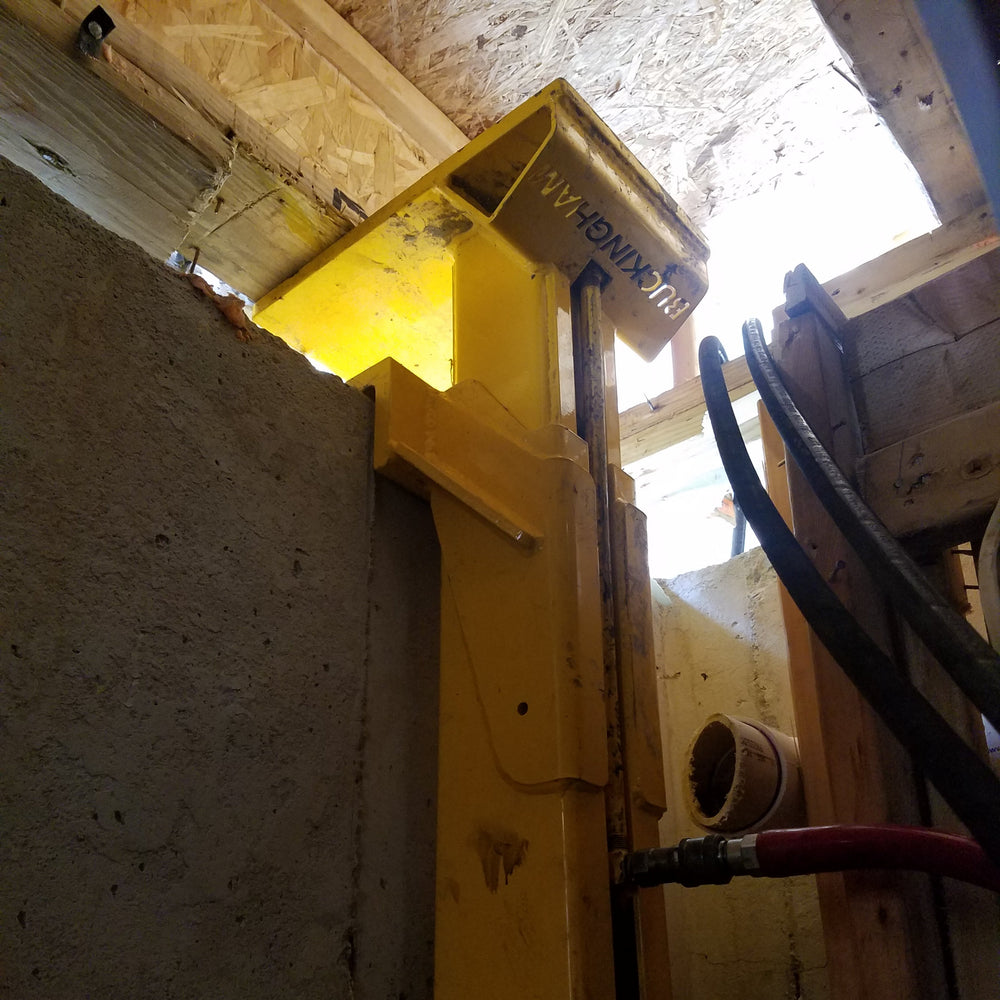

Buckingham Toe Jack Adaptors

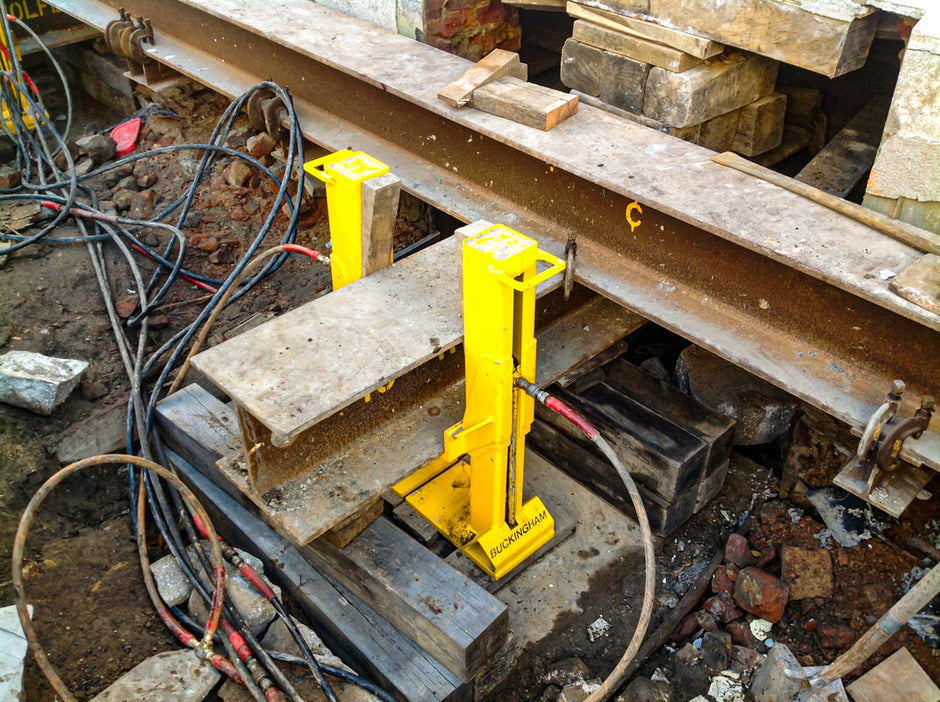

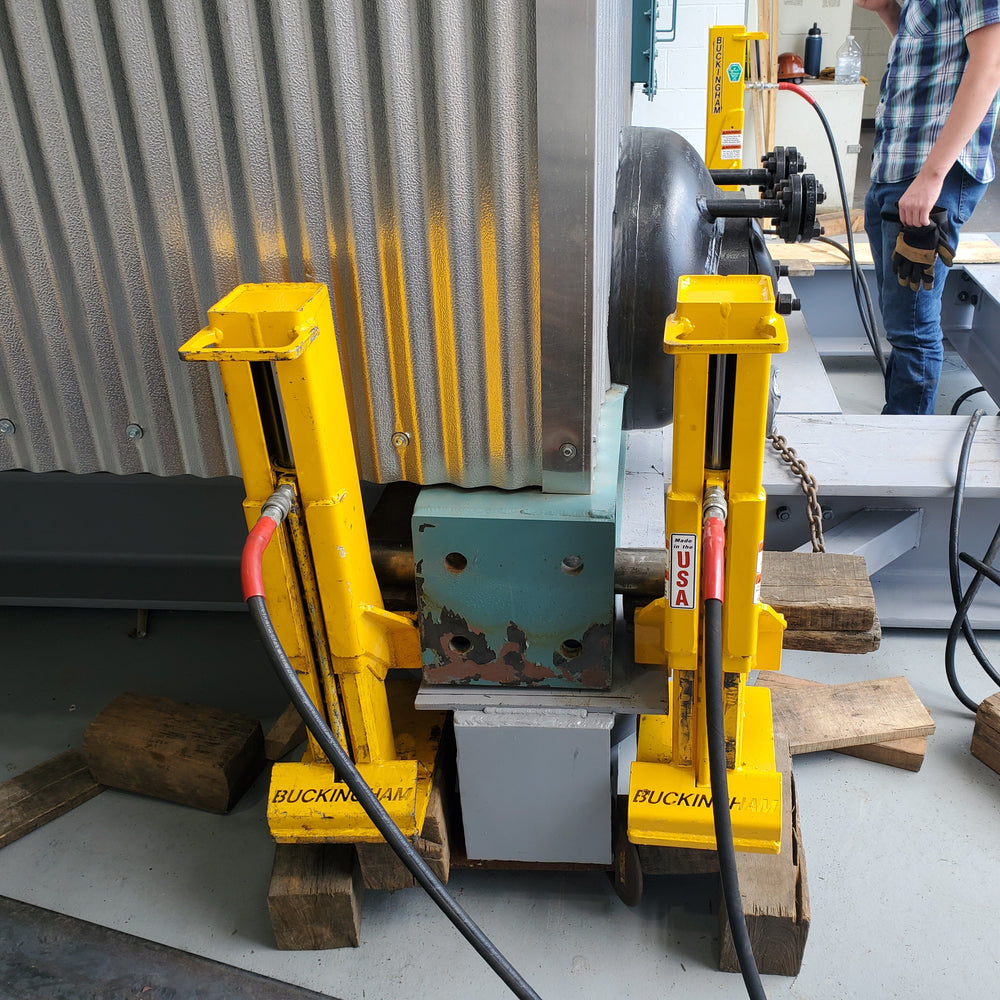

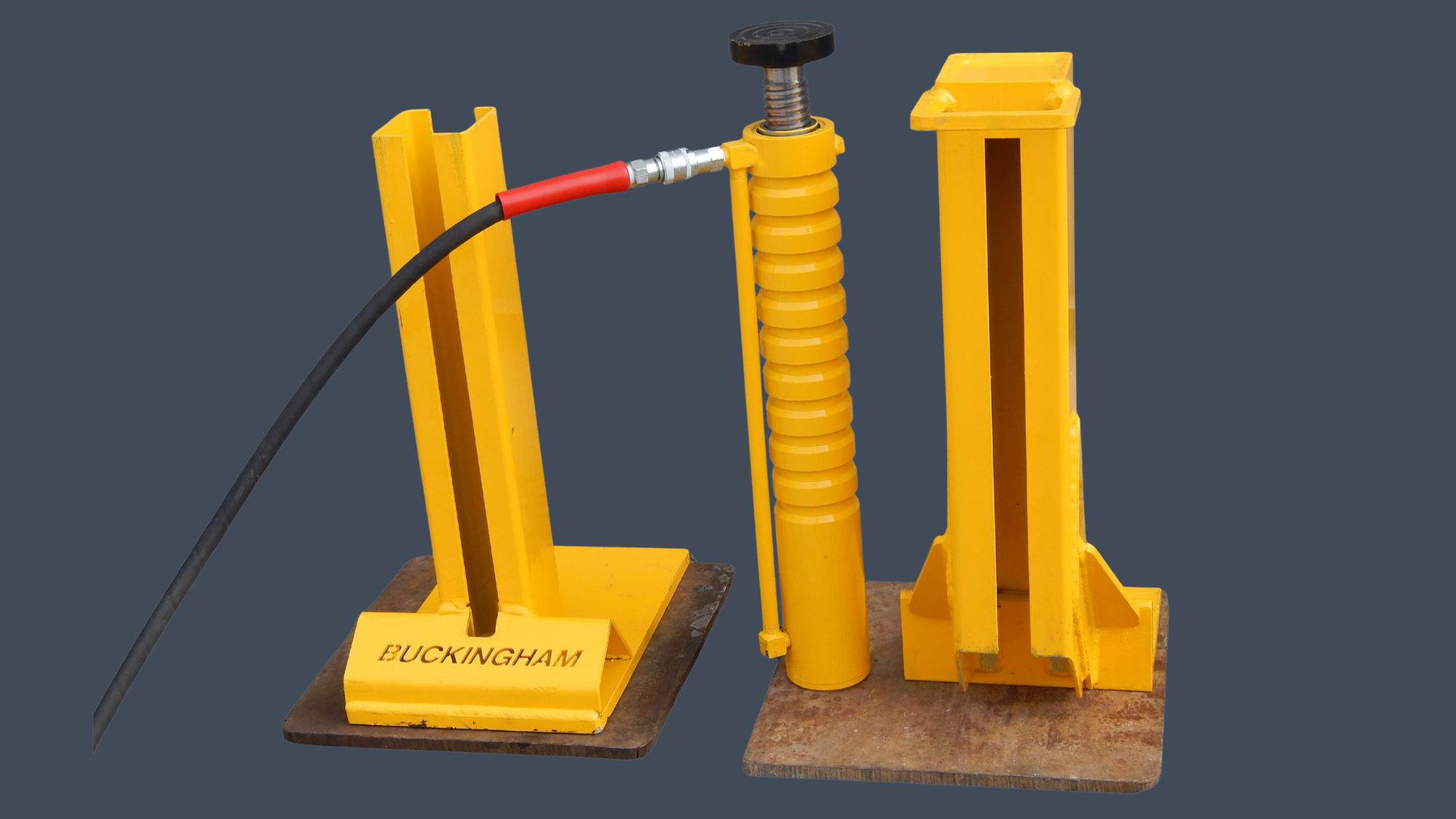

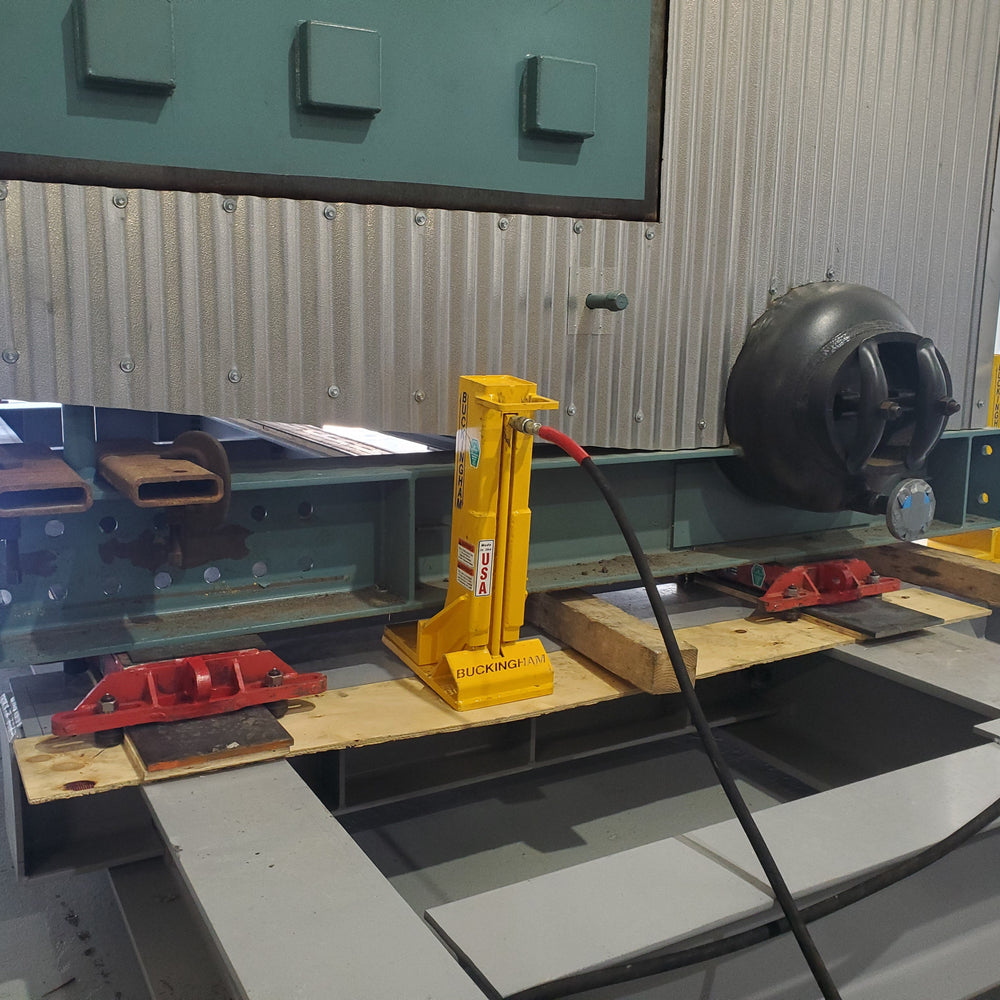

When clearance is limited, Toe Jack Adaptors give you a compact, high-capacity option. They accept a standard 17" Single-Acting Crib Jack insert, are rated 15 tons each, and weigh 108 lbs (without the jack), providing lift heights up to 17"
key features
Capacity
Tight-site maneuverability
Stroke length
Made in the USA

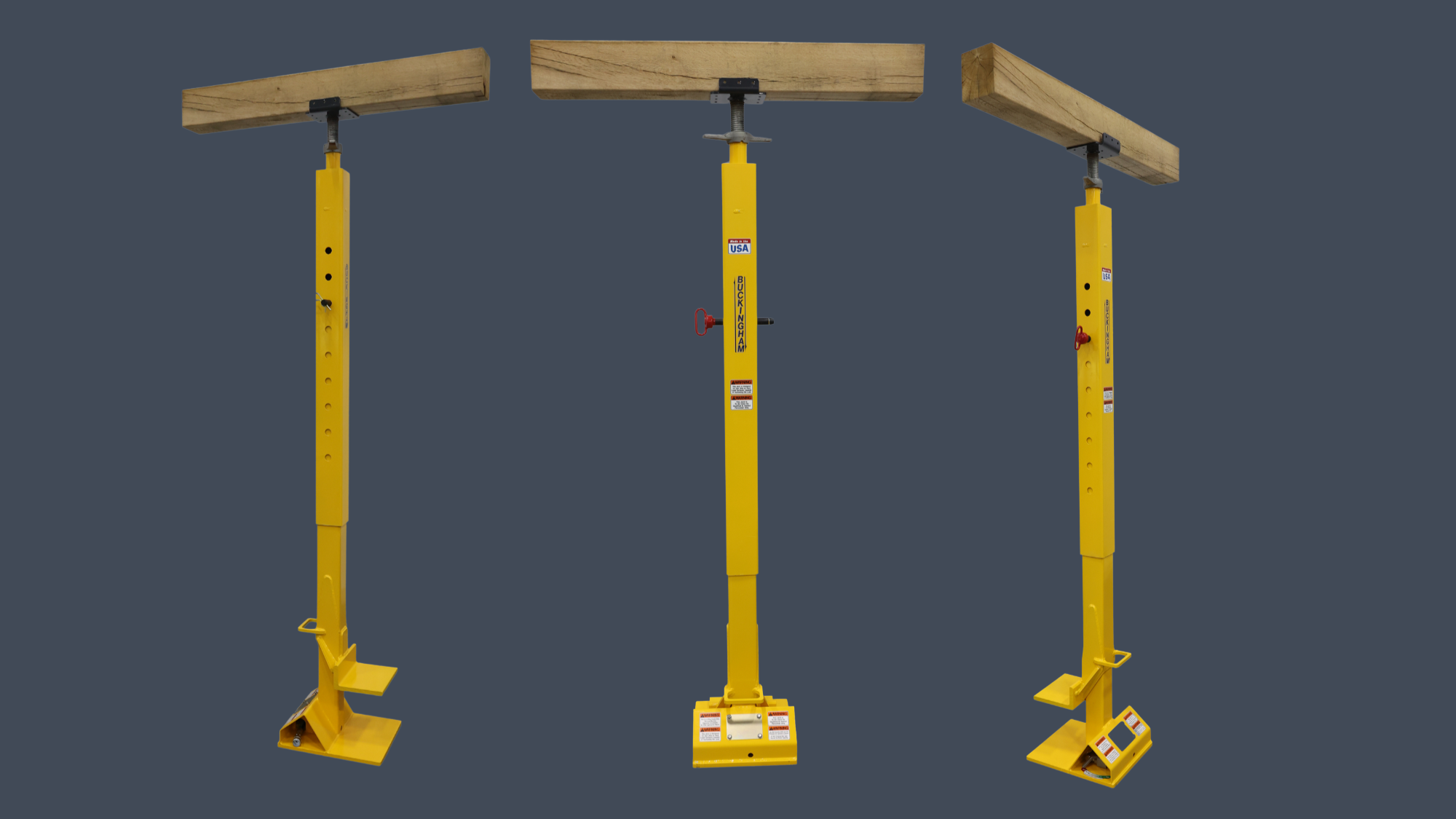

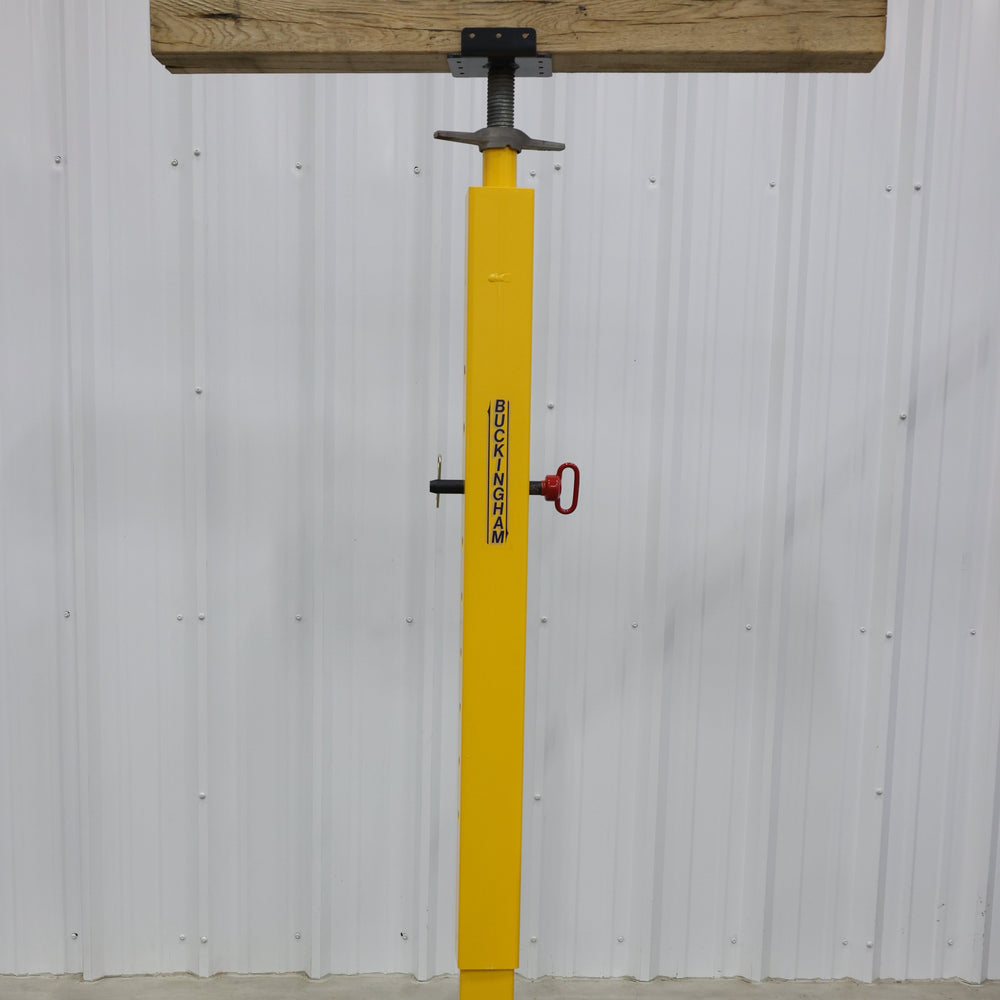

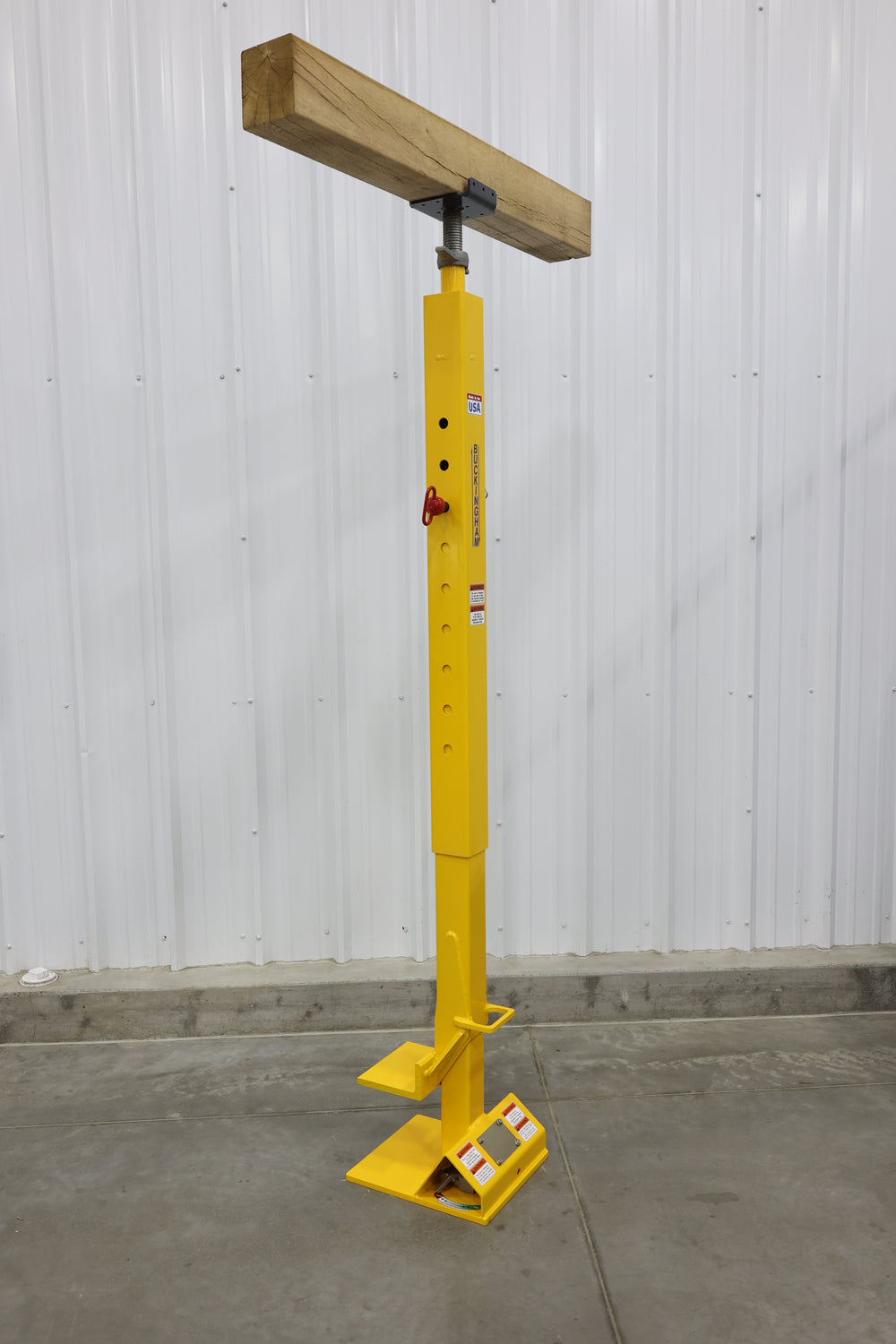

Toe Jack Extensions

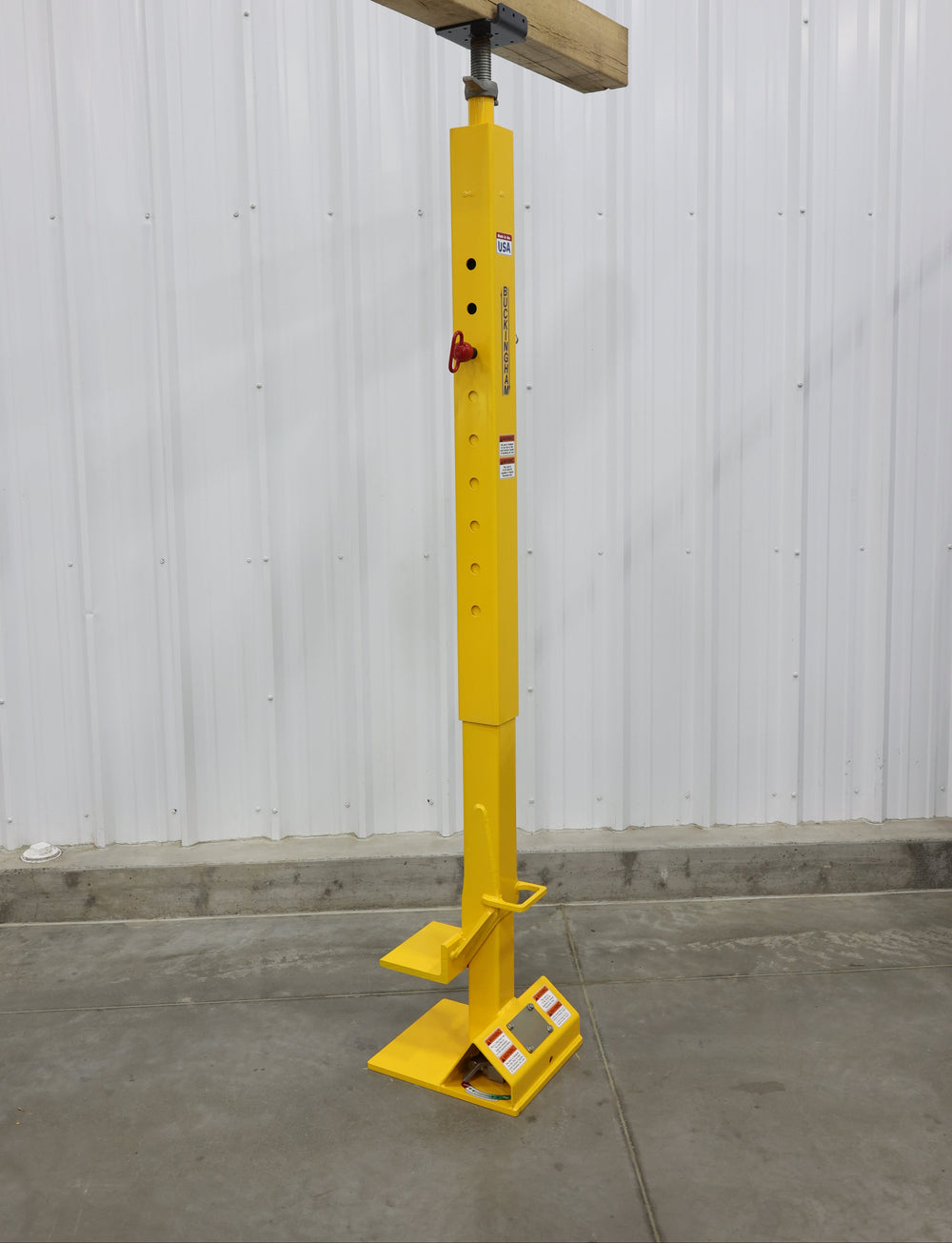

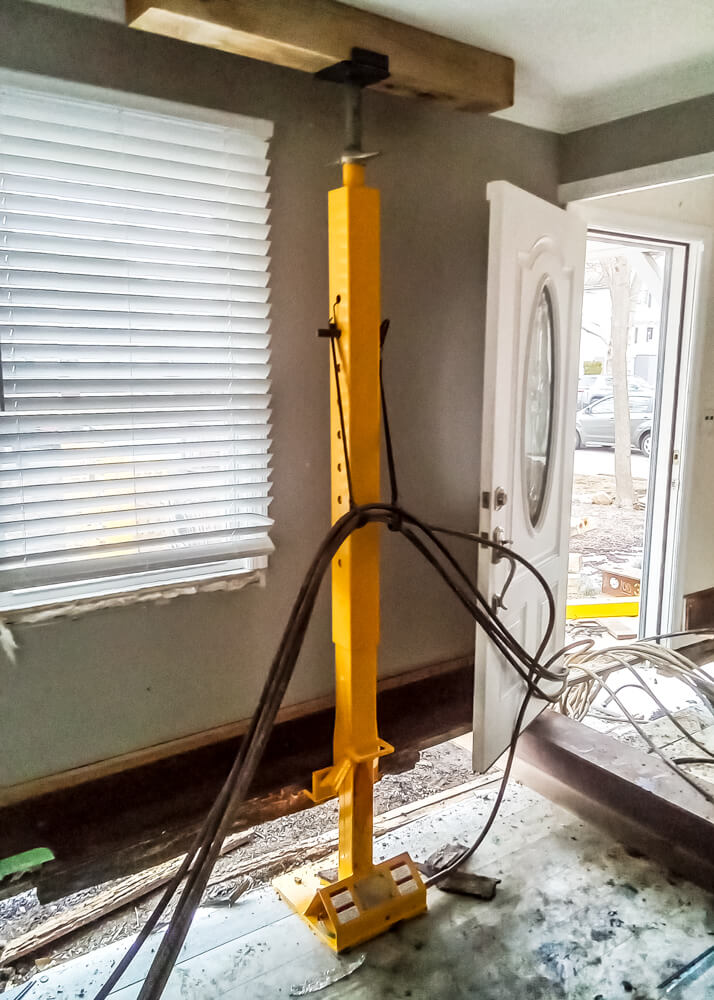

Buckingham Toe Jack Top Extensions

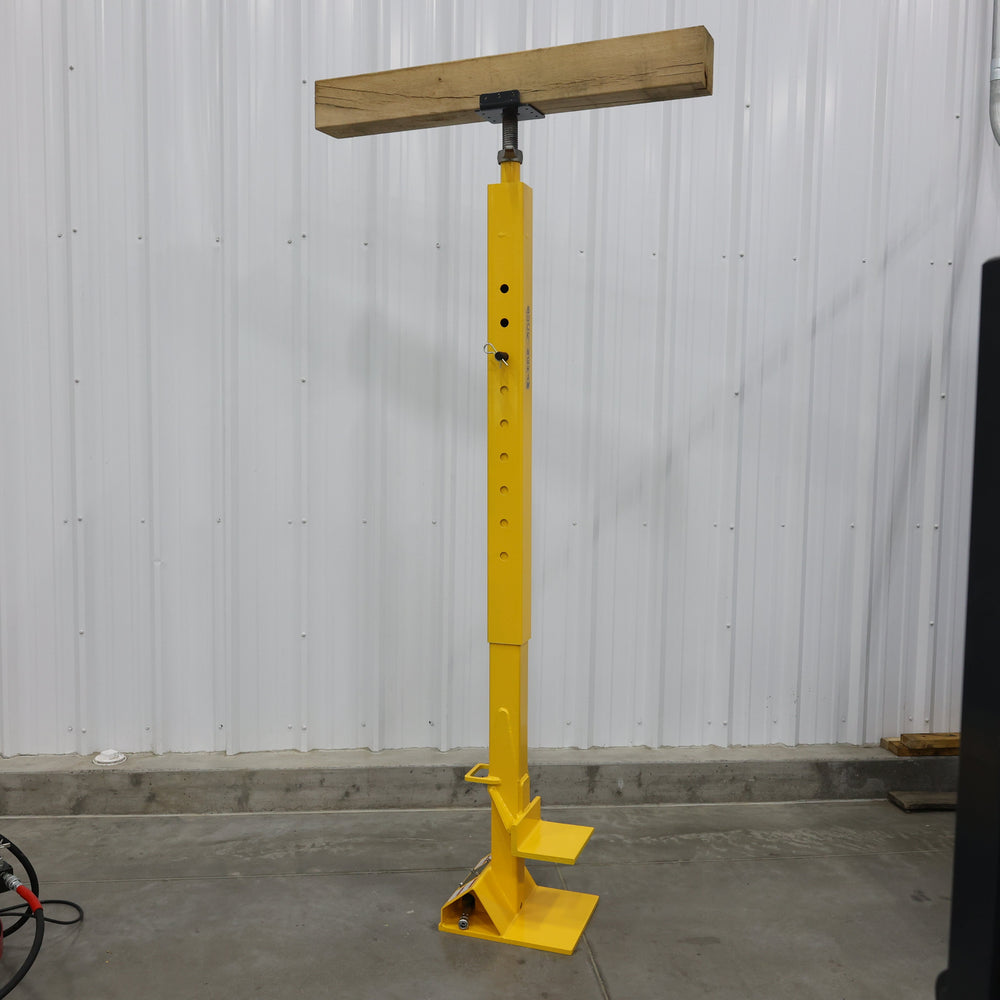

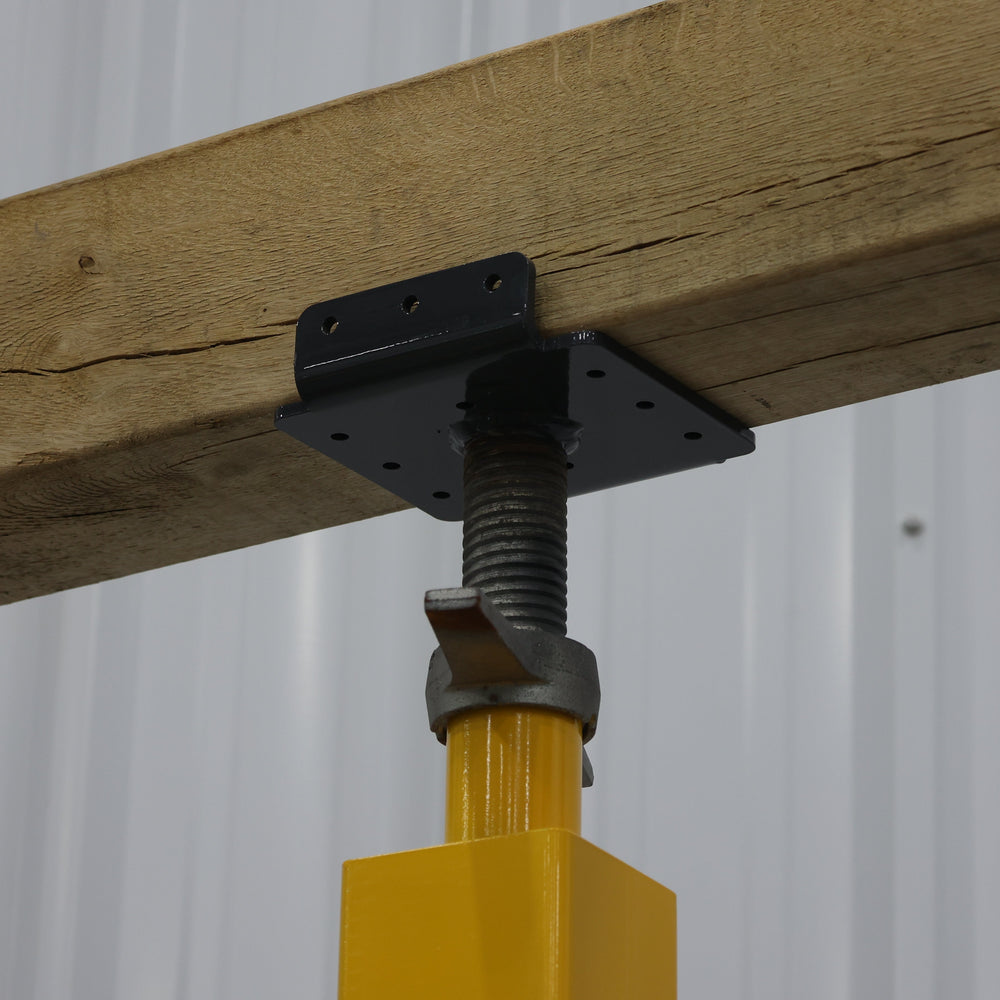

Add reach and control to your 44" Toe Jacks with Top Extensions featuring integrated screw-tops. They add an extra 78"–110" of collapsed height (application-dependent) and adjust in 4" increments with a safety pin for secure, staged lifting.
Key features
Extension
Adjustability
Locking pins
Fine adjustments
Integration
BUCKINGHAM TOE JACKS — QUANTITY & QUOTE
| Item | Qty | Action |
|---|
PSI x 4.906 / 2000 = tons per cylinder
| 2.5" bore |
| PSI XS |
| TONS XS |
| 2.5" bore | ||||||||||||||||||||||||
| PSI | 250 | 500 | 750 | 1000 | 1250 | 1500 | 1750 | 2000 | 2250 | 2500 | 2750 | 3000 | 3250 | 3500 | 3750 | 4000 | 4250 | 4500 | 4750 | 5000 | 5500 | 6000 | 6500 | 7000 |
| TONS | .61 | 1.23 | 1.84 | 2.45 | 3.07 | 3.68 | 4.29 | 4.91 | 5.52 | 6.13 | 6.75 | 7.36 | 7.97 | 8.59 | 9.2 | 9.81 | 10.43 | 11.04 | 11.65 | 12.27 | 13.49 | 14.72 | 15.94 | 17.17 |
